Ezcurrite R060645

Browse Search Results
<< Previous |  Back to Search Results |  Next >>
Record 1343 of 4216

Name: Ezcurrite
RRUFF ID: R060645
Ideal Chemistry: Na2B5O7(OH)3·2H2O
Locality: Salar del Hombre Muerto, Catamarca, Argentina
Source: Michael Scott S100818 [view label]
Owner: RRUFF
Description: Colorless prismatic fragment
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis
Quick search: [ All Ezcurrite samples (2) ]
CHEMISTRY
RRUFF ID: R060645.2
Sample Description: Microprobe Fragment
Measured Chemistry: Na2.00B5O7(OH)3ยท2H2O ;trace amounts of Si; B and OH not measured but estimated by stoichiometry
Microprobe Data File: [ Download Excel File ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R060645
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 25% of 150mW
DOWNLOADS:

Raman Data (RAW) View Graph
RRUFF File

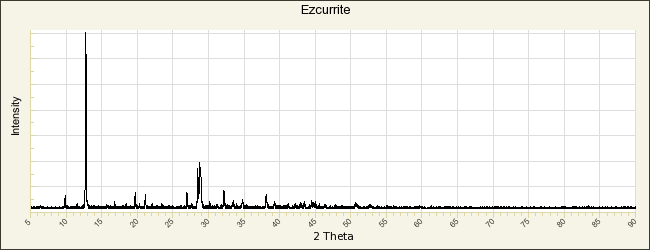

POWDER DIFFRACTION
RRUFF ID: R060645.1
Sample Description: Powder
Cell Refinement Output: a: 8.605(2)Å    b: 9.611(2)Å    c: 6.5863(6)Å
alpha: 102.67(2)°    beta: 107.57(1)°    gamma: 71.45(1)°   Volume: 487.73(9)Å3    Crystal System: triclinic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

Cell Refinement Data
Cell Refinement Output Data
DIF File
X-ray Data (XY - Processed)
RRUFF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Ezcurrite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Fleischer M (1957) New mineral names, American Mineralogist, 42, 919-921   [view file]

Muessig S, Allen R D (1957) Ezcurrite (2Na2O·5B2O3·7H2O), a new sodium borate from Argentina; occurrence, mineralogy, and associated minerals, Economic Geology, 52, 426-437

Hurlbut C S, Aristarain L F (1967) Ezcurrite, 2Na2O·5B2O8·7H2O: a restudy, American Mineralogist, 52, 1048-1059   [view file]

Cannillo E, Dal Negro A, Ungaretti L (1973) The crystal structure of ezcurrite, American Mineralogist, 58, 110-115   [view file]
