Cryolite R120027

Browse Search Results
<< Previous |  Back to Search Results |  Next >>
Record 968 of 4043


Name: Cryolite
RRUFF ID: R120027
Ideal Chemistry: Na2NaAlF6
Locality: Francon quarry, Montréal, Québec, Canada
Source: Donald Doell [view label]
Owner: RRUFF
Description: Pale brownish-yellow massive
Status: The identification of this mineral has been confirmed by single-crystal X-ray diffraction.
Mineral Group: [ Perovskite (39) ]
Quick search: [ All Cryolite samples (3) ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented Raman on the primary sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.

Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R120027
Wavelength:
Sample Description: Unoriented Raman on the primary sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW

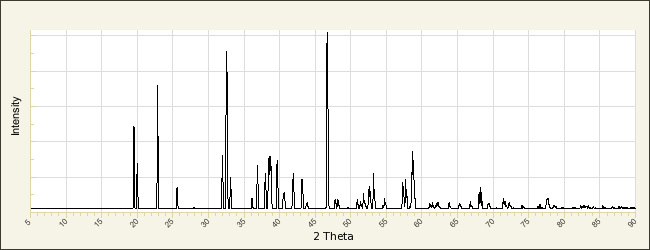

POWDER DIFFRACTION
RRUFF ID: R120027.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 5.411(1)Å    b: 5.598(1)Å    c: 7.773(2)Å
alpha: 90°    beta: 90.23(1)°    gamma: 90°   Volume: 235.44(9)Å3    Crystal System: monoclinic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

X Min:    X Max:    X Sort:
REFERENCES for Cryolite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Abilgaard P C (1799) Norwegische titanerze und andre neue fossilien, Allgemeines Journal der Chemie, 2, 502-502   [view file]

Karsten D L G (1800) Tabellarische uebersicht der mineralogisch - einfachen fossilien, in Mineralogische Tabellen Heinrich August Rottmann Berlin 28-28   [view file]

Náray-Szabó S, Sasvári K (1938) Die struktur des kryoliths Na3AlF6, Zeitschrift für Kristallographie, 99, 27-31   [view file]

Hawthorne F C, Ferguson R B (1975) Refinement of the crystal structure of cryolite, The Canadian Mineralogist, 13, 377-382   [view file]

Ross K C, Mitchell R H, Chakhmouradian A R (2003) The crystal structure of synthetic simmonsite, Na2LiAlF6, Journal of Solid State Chemistry, 172, 95-101

Zhou Q, Kennedy B J (2004) High-temperature powder synchrotron diffraction studies of synthetic cryolite Na3AlF6, Journal of Solid State Chemistry, 177, 654-659

Mitchell R H, Welch M D, Chakhmouradian A R (2017) Nomenclature of the perovskite supergroup: A hierarchical system of classification based on crystal structure and composition, Mineralogical Magazine, 81, 411-461   [view file]
