Name: Hopeite
RRUFF ID: R050254
Ideal Chemistry: Zn3(PO4)2·4H2O
Locality: Broken Hill mine, Kabwe, Zambia
Source: Marcus Origlieri
Owner: RRUFF
Description: Reddish-orange tabular single crystal
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis
Mineral Group: [ Hopeite (2) ]
Quick search: [ All Hopeite samples (2) ]
CHEMISTRY
RRUFF ID: R050254.2
Sample Description: Microprobe Fragment
Measured Chemistry: (Zn2.93Mg0.07)Σ=3(P1.00O4)2·4H2O
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.

Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R050254
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW

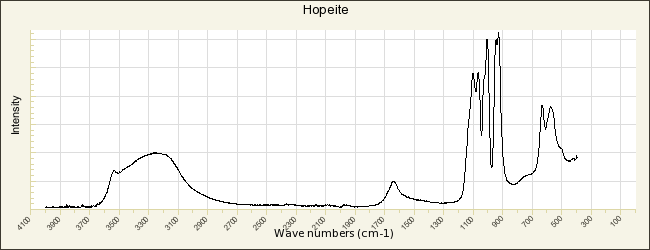

INFRARED SPECTRUM (Attenuated Total Reflectance)
RRUFF ID: R050254.1
Sample Description: Powder
Instrument settings: SensIR Durascope on a Nicolet Magna 860 FTIR
Resolution:
X Min:    X Max:    X Sort:

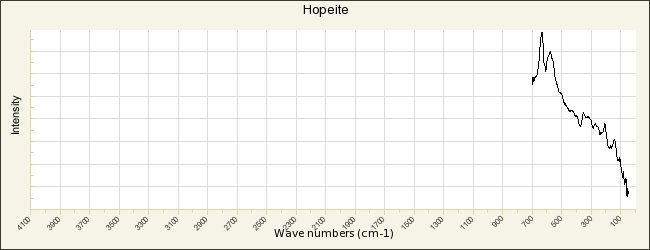

RRUFF ID: R050254.1
Sample Description: Powder
Instrument settings: PIKE GladiATR - Far-IR on a Nicolet Magna 860 FTIR
Resolution:
X Min:    X Max:    X Sort:

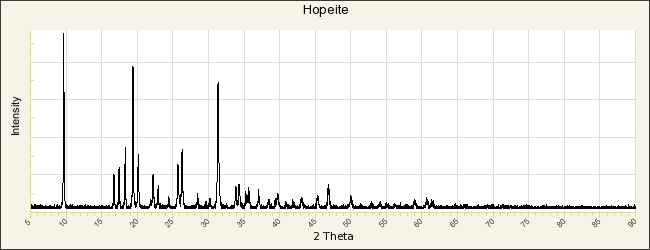

POWDER DIFFRACTION
RRUFF ID: R050254.1
Sample Description: Powder
Cell Refinement Output: a: 10.588(1)Å    b: 18.307(1)Å    c: 5.0318(6)Å
alpha: 90°    beta: 90°    gamma: 90°   Volume: 975.3(0)Å3    Crystal System: orthorhombic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

X Min:    X Max:    X Sort:
REFERENCES for Hopeite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Brewster D (1823) Art. XXII.-Proceedings of the Royal Society of Edinburgh. (Continued from Vol. VIII. p. 386), Edinburgh Philosophy Journal, 9, 186-186   [view file]

Brewster D (1826) Description of hopeite, a new mineral from Altenberg near Aix-la-Chapelle, Transactions of the Royal Society of Edinburgh, 10, 107-111   [view file]

Mamedov K S, Gamidov R S, Belov N V (1961) Crystal structure of hopeite, Zn3(PO4)2·4(H2O), Soviet Physics - Crystallography, 6, 91-94   [view file]

Liebau F (1965) Zur kristallstruktur des hopeits, Zn3[PO4]2·4H2O, Acta Crystallographica, 18, 352-354

Kawahara A, Takano Y, Takahashi M (1973) The structure of hopeite, Mineralogical Journal, 7, 289-297   [view file]

Whitaker A (1975) The crystal structure of hopeite, Zn3(PO4)2·4H2O, Acta Crystallographica, B31, 2026-2035

Hill R J, Jones J B (1976) The crystal structure of hopeite, American Mineralogist, 61, 987-995   [view file]

Whitaker A (1978) The crystal structure of hopeite, Zn3(PO4)2·4H2O: errata, Acta Crystallographica, B34, 2385-2386

Haussuehl S, Middendorf B, Doerffel M (1991) Structure and properties of hopeites (MgxZn1-x)3(PO4)2·4(H2O), Journal of Solid State Chemistry, 93, 9-16

Rolland C, Guidoin R, Ledoux R, Zerguini A, Roy P E (1991) Carbonate-hydroxylapatite, hopeite, and parascholzite in fibrous capsules surrounding silicone breast implants, The Canadian Mineralogist, 29, 337-345   [view file]

Pawlig O, Trettin R (1999) Synthesis and characterization of α-hopeite, Zn3(PO4)2·4H2O, Materials Research Bulletin, 34, 1959-1966

Frost R L (2004) An infrared and Raman spectroscopic study of natural zinc phosphates, Spectrochimica Acta Part A, 60, 1439-1445

Herschke L, Enkelmann V, Lieberwirth I, Wenger G (2004) The role of hydrogen bonding in the crystal structures of zinc phosphate hydrates, Chemistry - A European Journal, 10, 2795-2803
