Dundasite R060760

Browse Search Results
<< Previous |  Back to Search Results |  Next >>
Record 1187 of 4216


Name: Dundasite
RRUFF ID: R060760
Ideal Chemistry: PbAl2(CO3)2(OH)4·H2O
Locality: Daoping mine, Guangxi, China
Source: Michael Scott S101361 [view label]
Owner: RRUFF
Description: Spherical aggregates of pale green acicular crystals, associated with colorless cerussite, anglesite, and blue linarite R120094.
Status: The identification of this mineral has been made only by X-ray diffraction.
Mineral Group: [ Dundasite (5) ]
Quick search: [ All Dundasite samples (2) ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented Sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.

Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R060760
Wavelength:
Sample Description: Unoriented Sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW

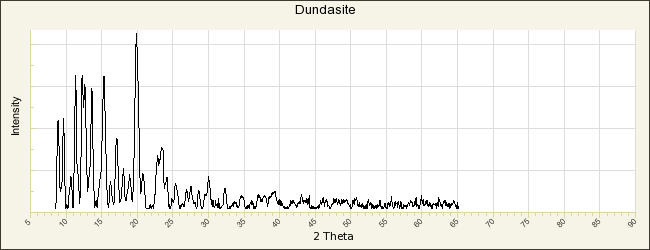

POWDER DIFFRACTION
RRUFF ID: R060760.9
Sample Description: Powder, using Mo radiation
Cell Refinement Output: a: 9.084(7)Å    b: 16.504(8)Å    c: 5.727(5)Å
alpha: 90°    beta: 90°    gamma: 90°   Volume: 858.6(7)Å3    Crystal System: orthorhombic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

X Min:    X Max:    X Sort:
REFERENCES for Dundasite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Petterd W F (1894) A catalogue of the minerals known to occur in Tasmania, with notes on their distribution, Papers and Proceedings of the Royal Society of Tasmania for 1893, 1984, 1-72   [view file]

Cocco G, Fanfani L, Nunzi A, Zanazzi P F (1972) The crystal structure of dundasite, Mineralogical Magazine, 38, 564-569   [view file]

Farrell D M (1977) Infrared investigation of basic double-carbonate hydrate minerals, The Canadian Mineralogist, 15, 408-413   [view file]
