Name: Graeserite
RRUFF ID: R110054
Ideal Chemistry: Fe3+4Ti3As3+O13(OH)
Locality: Binntal, Wallis, Switzerland
Source: Bob Jenkins [view label]
Owner: RRUFF
Description: Black prismatic crystals, associated with brown rutile, yellow muscovite, green clinochlore and colorless orthoclase
Status: The identification of this mineral has been confirmed by single-crystal X-ray diffraction.
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented Raman on the primary sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.

Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R110054
Wavelength:
Sample Description: Unoriented Raman on the primary sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW

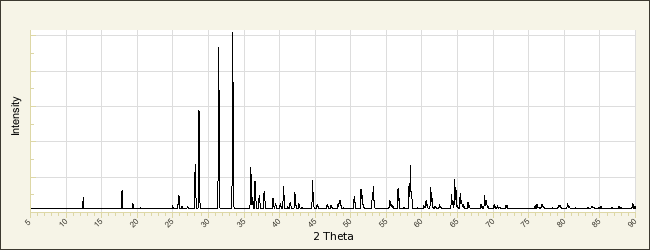

POWDER DIFFRACTION
RRUFF ID: R110054.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 5.0143(4)Å    b: 14.260(2)Å    c: 7.1716(8)Å
alpha: 90°    beta: 105.254(7)°    gamma: 90°   Volume: 494.7(2)Å3    Crystal System: monoclinic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

X Min:    X Max:    X Sort:
REFERENCES for Graeserite

American Mineralogist Crystal Structure Database Record: [view record]

Berlepsch P, Armbruster T (1998) The crystal structure of Pb2+-bearing graeserite, Pb0.14(Fe,Ti)7AsO12+x(OH)2-x, a mineral of the derbylite group, Schweizerische Mineralogische und Petrographische Mitteilungen, 78, 1-9

Krzemnicki M S, Reusser E (1998) Graeserite, Fe4Ti3AsO13(OH), a new mineral species of the derbylite group from the Monte Leone Nappe, Binntal Region, Western Alps, Switzerland, The Canadian Mineralogist, 36, 1083-1104   [view file]

Jambor J L, Roberts A C (1999) New mineral names, American Mineralogist, 84, 990-994   [view file]

Roth P (2007) Graeserite, in Minerals first discovered in Switzerland and minerals named after Swiss individuals Kristallografik Verlag Achberg Germany 76-77

Biagioni C, Bonaccorsi E, Perchiazzi N, Hålenius U, Zaccarini F (2020) Derbylite and graeserite from the Monte Arsiccio mine, Apuan Alps, Tuscany, Italy: occurrence and crystal-chemistry, Mineralogical Magazine, 84, 766-777   [view file]
