Alum-(K) R040134

Browse Search Results
<< Previous |  Back to Search Results |  Next >>
Record 1 of 3

Name: Alum-(K)
RRUFF ID: R040134
Ideal Chemistry: KAl(SO4)2·12H2O
Locality: Alunite mine, Esmeralda County, Nevada, USA
Source: University of Arizona Mineral Museum 9391 [view label]
Owner: RRUFF
Description: Colorless coarsely crystalline massive
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis
Quick search: [ All Alum-(K) samples (3) ]
CHEMISTRY
RRUFF ID: R040134.2
Sample Description: Microprobe Fragment
Measured Chemistry: (K0.86(NH4)0.14)Σ=1Al1.00(S1.00O4)2·12H2O ; NH4 not measured but estimated by stoichiometry

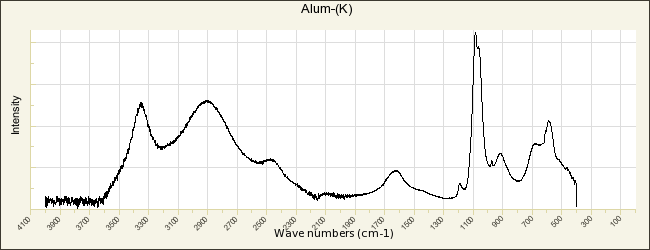

RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R040134
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
DOWNLOADS:

Raman Data (RAW) View Graph
RRUFF File
INFRARED SPECTRUM (Attenuated Total Reflectance)
RRUFF ID: R040134.1
Sample Description: Powder
Instrument settings: SensIR Durascope on a Nicolet Magna 860 FTIR
Resolution:
DOWNLOADS:

Infrared Data (Processed)
RRUFF File
X Min:    X Max:    X Sort:
POWDER DIFFRACTION
RRUFF ID: R040134.1
Sample Description: Powder
Cell Refinement Output: a: 12.1614(1)Å    b: 12.1614(1)Å    c: 12.1614(1)Å
alpha: 90.°    beta: 90.°    gamma: 90.°   Volume: 1798.67(5)    Crystal System: cubic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

Cell Refinement Data
Cell Refinement Output Data
DIF File
X-ray Data (XY - Processed)
RRUFF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Alum-(K)

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Palache C, Berman H, Frondel C (1951) 29.5.5.1 Potash alum [KAl(SO4)2·12H2O], in The System of Mineralogy, Volume II, Seventh Edition John Wiley and Sons, Inc New York 472-474   [view file]

Nyburg S C, Steed J, Aleksovska S, Petrusevski V M (2000) Structure of the alums. I. On the sulfate group disorder in the alpha-alums, Acta Crystallographica, B56, 204-209

Burke E A J (2008) Tidying up mineral names: an IMA-CNMNC scheme for suffixes, hyphens and diacritical marks, The Mineralogical Record, 39, 131-135   [view file]
