Balangeroite R060244



Name: Balangeroite
RRUFF ID: R060244
Ideal Chemistry: Mg21Si8O27(OH)20
Locality: San Vittore mine, Balangero Serpentinite, Lanzo Valley, Piedmont, Italy
Source: Michael Scott S100332 [view label]
Owner: RRUFF
Description: Brown fibers, asbestiform
Status: The identification of this mineral is not yet confirmed.
CHEMISTRY
RRUFF ID: R060244.2
Sample Description: Microprobe Fragment
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented Raman on the primary sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.

Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R060244
Wavelength:
Sample Description: Unoriented Raman on the primary sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW

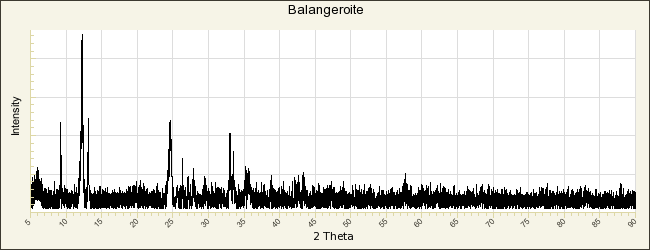

POWDER DIFFRACTION
RRUFF ID: R060244.1
Sample Description: Powder
  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

X Min:    X Max:    X Sort:
REFERENCES for Balangeroite

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Compagnoni R, Ferraris G, Fiora L (1983) Balangeroite, a new fibrous silicate related to gageite from Balangero, Italy, American Mineralogist, 68, 214-219   [view file]

Ferraris G, Mellini M, Merlino S (1987) Electron-diffraction and electron-microscopy study of balangeroite and gageite: Crystal structures, polytypism, and fiber texture, American Mineralogist, 72, 382-391   [view file]

Belluso E, Ferraris G (1991) New data on balangeroite and carlosturanite from alpine serpentinites, European Journal of Mineralogy, 3, 559-566

Bonaccorsi E, Ferraris G, Merlino S (2012) Crystal structure of 2M and 1A polytypes of balangeroite, Zeitschrift für Kristallographie, 227, 460-467   [view file]
