Brucite R050455

Browse Search Results
<< Previous |  Back to Search Results |  Next >>
Record 2 of 2

Name: Brucite
RRUFF ID: R050455
Ideal Chemistry: Mg(OH)2
Locality: Texas, Lancaster County, Pennsylvania, USA
Source: University of Arizona Mineral Museum 7401
Owner: RRUFF
Description: Group of green tabular crystals
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis
Quick search: [ All Brucite samples (2) ]
CHEMISTRY
RRUFF ID: R050455.2
Sample Description: Microprobe Fragment
Measured Chemistry: (Mg0.99Mn0.01)(OH)2
Reference File: [ View PDF ]

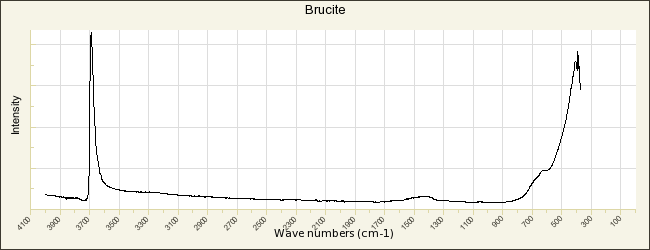

RAMAN SPECTRUM
RRUFF ID:
Sample Description: Sample is oriented and mounted onto a pin.
Pin ID: M00147
Orientation: Laser parallel to  c*  (0 0 1).     Fiducial mark perpendicular to laser is parallel to  a   [1 0 0].
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R050455
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
DOWNLOADS:

Raman Data (Processed)
RRUFF File
Raman Data (RAW) View Graph
RRUFF File
INFRARED SPECTRUM (Attenuated Total Reflectance)
RRUFF ID: R050455.1
Sample Description: Powder
Instrument settings: SensIR Durascope on a Nicolet Magna 860 FTIR
Resolution:
DOWNLOADS:

Infrared Data (Processed)
RRUFF File
X Min:    X Max:    X Sort:

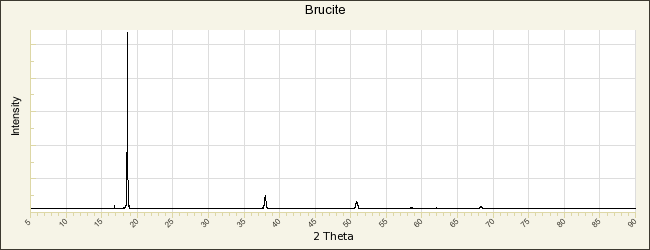

POWDER DIFFRACTION
RRUFF ID: R050455.1
Sample Description: powder
Cell Refinement Output: a: 3.1543(2)Å    b: 3.1543(2)Å    c: 4.7711(3)Å
alpha: 90°    beta: 90°    gamma: 120°   Volume: 41.110(5)    Crystal System: hexagonal
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

Cell Refinement Data
Cell Refinement Output Data
DIF File
X-ray Data (XY - Processed)
RRUFF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Brucite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Bruce A (1814) On native magnesia from New Jersey, The American Mineralogical Journal, 1, 26-30   [view file]

Silliman B (1818) Scientific Intelligence. Brucite, The American Journal of Science, 1, 439-439   [view file]

Seybert H (1823) On the discovery of fluoric acid in the condrodite, The American Journal of Science and Arts, 6, 356-361   [view file]

Tupper W M (1963) Brucite, a new occurence at Meat Cove, Nova Scotia, The Canadian Mineralogist, 7, 796-804   [view file]

Schmalz R F (1965) Brucite in carbonate secreted by the red alga goniolithon sp., Science, 149, 993-996

Peterson R C, Hill R J, Gibbs G V (1979) A molecular – orbital study of distortions in the layer structures brucite, gibbsite, and serpentine, The Canadian Mineralogist, 17, 703-711   [view file]

Whittaker E J W, Middleton A P (1979) The intergrowth of fibrous brucite and fibrous magnesite with chrysotile, The Canadian Mineralogist, 17, 699-702   [view file]

Parise J B, Leinenweber K, Weidner D J, Tan K, Von Dreele R B (1994) Pressure-induced H bonding: Neutron diffraction study of brucite, Mg(OD)2, to 9.3 GPa, American Mineralogist, 79, 193-196   [view file]

Shinoda K, Yamakata M, Nanba T, Kimura H, Moriwaki T, Kondo Y, Kawamoto T, Niimi N, Miyoshi N, Aikawa N (2002) High-pressure phase transition and behavior of protons in brucite Mg(OH)2: a high-pressure-temperature study using IR synchrotron radiation, Physics and Chemistry of Minerals, 29, 396-402

Frost R L, Weier M L, Kloprogge J T (2003) Raman spectroscopy of some natural hydrotalcites with sulphate and carbonate in the interlayer, Journal of Raman Spectroscopy, 34, 760-768

Braterman P S, Cygan R T (2006) Vibrational spectroscopy of brucite: A molecular simulation investigation, American Mineralogist, 91, 1188-1196   [view file]

Jiang F, Speziale S, Duffy T S (2006) Single-crystal elasticity of brucite, Mg(OH)2, to 15 GPa by Brillouin scattering, American Mineralogist, 91, 1893-1900   [view file]

Mookherjee M, Stixrude L (2006) High-pressure proton disorder in brucite, American Mineralogist, 91, 127-134   [view file]

Frost R L, Palmer S J, Bouzaid J M, Reddy B J (2007) A Raman spectroscopic study of humite minerals, Journal of Raman Spectroscopy, 38, 68-77
