Name: Chalcanthite
RRUFF ID: R050354
Ideal Chemistry: CuSO4·5H2O
Locality: Utah, USA
Source: California Institute of Technology W-3954
Owner: RRUFF
Description: Group of blue parallel prismatic crystals
Status: The identification of this mineral has been confirmed by X-ray diffraction.
Quick search: [ All Chalcanthite samples (4) ]
CHEMISTRY
RRUFF ID: R050354.2
Sample Description: Microprobe Fragment
Measured Chemistry: Cu1.00S1.00O4ยท5H2O
Microprobe Data File: [ Download Excel File ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R050354
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
DOWNLOADS:

Raman Data (RAW) View Graph
RRUFF File

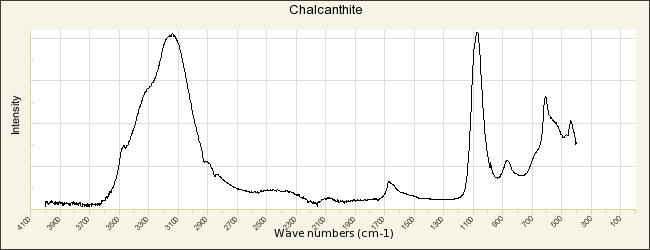

INFRARED SPECTRUM (Attenuated Total Reflectance)
RRUFF ID: R050354.1
Instrument settings: SensIR Durascope on a Nicolet Magna 860 FTIR
Resolution:
DOWNLOADS:

Infrared Data (Processed)
RRUFF File
X Min:    X Max:    X Sort:
POWDER DIFFRACTION
RRUFF ID: R050354.1
Sample Description: Powder
Cell Refinement Output: a: 6.1161(3)Å    b: 10.7129(7)Å    c: 5.9593(4)Å
alpha: 82.376(5)°    beta: 107.301(5)°    gamma: 102.593(4)°   Volume: 362.86(3)    Crystal System: triclinic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

Cell Refinement Data
Cell Refinement Output Data
DIF File
X-ray Data (XY - Processed)
RRUFF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Chalcanthite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Lakshman S V J, Reddy B J (1973) Optical absorption spectra of Cu2+ in chalcanthite and malachite, The Canadian Mineralogist, 12, 207-210   [view file]

Bacon G E, Titterton D H (1975) Neutron-diffraction studies of CuSO4·5(H2O) and CuSO4·5(D2O), Zeitschrift für Kristallographie, 141, 330-341   [view file]

Mestres L, Martinez M L, Rodriguez A (1987) The isomorphism between CuSeO4·5H2O and CuSO4·5H2O, Zeitschrift für Kristallographie, 180, 179-187   [view file]
