Chapmanite R060910
Name: Chapmanite
RRUFF ID: R060910
Ideal Chemistry: Fe3+2Sb3+(SiO4)2(OH)
Locality: Cobalt, Ontario, Canada
Source: Royal Ontario Museum M14075 [view label]
Owner: RRUFF
Description: Greenish yellow massive
Status: The identification of this mineral has been confirmed by X-ray diffraction.
CHEMISTRY
RRUFF ID: R060910.2
Sample Description: Microprobe Fragment
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R060910
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 785nm @ 30% of 500mW
DOWNLOADS:

Raman Data (RAW) View Graph
RRUFF File

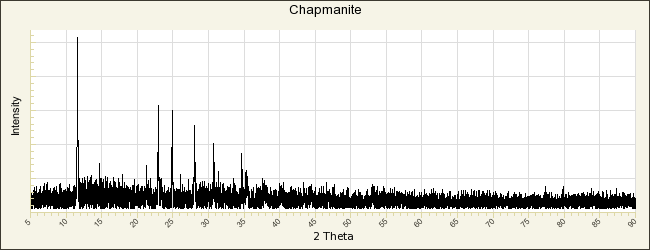

POWDER DIFFRACTION
RRUFF ID: R060910.1
Sample Description: powder
Cell Refinement Output: a: 5.211(2)Å    b: 8.993(1)Å    c: 7.770(1)Å
alpha: 90°    beta: 101.650(9)°    gamma: 90°   Volume: 356.64(9)    Crystal System: monoclinic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

Cell Refinement Data
Cell Refinement Output Data
DIF File
X-ray Data (XY - Processed)
RRUFF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Chapmanite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Walker T L (1924) Chapmanite, a new hydrous ferrous silicoantimonate, from South Lorrain, Ontario, Contributions to Canadian Mineralogy, 3, 5-8

Foshag W F (1925) New minerals: new species, American Mineralogist, 10, 39-41   [view file]

Fleischer M (1958) New mineral names, American Mineralogist, 43, 623-626   [view file]

Milton C, Axelrod J M, Ingram B (1958) Bismutoferrite, chapmanite, and “hypochlorite”, American Mineralogist, 43, 656-670   [view file]

Fleischer M (1959) New mineral names, American Mineralogist, 44, 464-470   [view file]

Cech F, Mandarino J A, Fleischer M, Hildebrand F A (1964) New mineral names, American Mineralogist, 49, 1497-1502   [view file]

Fleischer M (1965) New mineral names, American Mineralogist, 50, 2096-2111   [view file]

International Mineralogical Association (1968) International Mineralogical Association: Commission on new minerals and mineral names, Mineralogical Magazine, 36, 1143-1145   [view file]

Zhukhlistov A P, Zvyagin B B (1977) Determination of the crystal structures of chapmanite and bismuthoferrite by high-voltage electron diffraction, Soviet Physics - Crystallography, 22, 419-423

Ballirano P, Maras A, Marchetti F, Merlino S, Perchiazzi N (1998) Rietveld refinement of chapmanite SbFe2Si2O8OH, a TO dioctahedral kaolinite-like mineral, Powder Diffraction, 13, 44-49
