Digenite R060840
Name: Digenite
RRUFF ID: R060840
Ideal Chemistry: Cu1.8S
Locality: Butte, Montana, USA
Source: Michael Scott S101004 [view label]
Owner: RRUFF
Description: Black to deep blue metallic massive, diffraction indicates that this sample is in the high temperature form
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis
CHEMISTRY
RRUFF ID: R060840.2
Sample Description: Microprobe Fragment
Measured Chemistry: (Cu1.65Fe0.15)Σ=1.80S1.00
Microprobe Data File: [ Download Excel File ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R060840
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 65% of 150mW
DOWNLOADS:

Raman Data (RAW) View Graph
RRUFF File

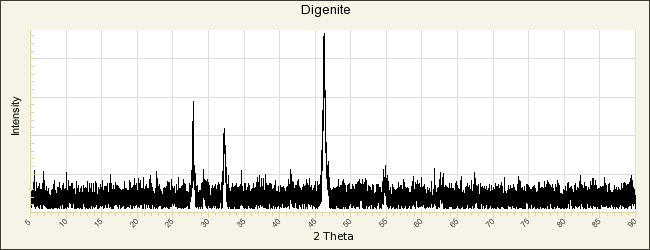

POWDER DIFFRACTION
RRUFF ID: R060840.1
Sample Description: powder
Cell Refinement Output: a: 5.5502(2)Å    b: 5.5502(2)Å    c: 5.5502(2)Å
alpha: 90°    beta: 90°    gamma: 90°   Volume: 170.97(2)    Crystal System: cubic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

Cell Refinement Data
Cell Refinement Output Data
DIF File
X-ray Data (XY - Processed)
RRUFF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Digenite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Breithaupt A (1844) Zwei neue kupfer enthaltende mineralien aus der ordnung der glanze, Annalen der Physik und Chemie, 137, 671-675   [view file]

Buerger N W (1942) X-ray evidence of the existence of the mineral digenite, Cu9S5, American Mineralogist, 27, 712-716   [view file]

Donnay G, Donnay J D H, Kullerud G (1957) Crystal and twin structure of digenite, Cu9S5, Acta Crystallographica, 10, 764-764

Donnay G, Donnay J D H, Kullerud G (1958) Crystal and twin structure of digenite, Cu9S5, American Mineralogist, 43, 228-242   [view file]

International Mineralogical Association (1962) International Mineralogical Association: Commission on new minerals and mineral names, Mineralogical Magazine, 33, 260-263   [view file]

Kazinets M M (1970) On the structure of certain phases in the copper-sulfur system, Soviet Physics - Crystallography, 14, 599-600

Pierce L, Buseck P R (1978) Super structuring in the bornite-digenite series: a high-resolution electron microscopy study, American Mineralogist, 63, 1-16   [view file]

International Mineralogical Association (1980) International Mineralogical Association: Commission on new minerals and mineral names, Mineralogical Magazine, 43, 1053-1055   [view file]

Whiteside L S, Goble R J (1986) Structural and compositional changes in copper sulfides during leaching and dissolution, The Canadian Mineralogist, 24, 247-258   [view file]

Will G, Hinze E, Abdelrahman ARM (2002) Crystal structure analysis and refinement of digenite, Cu1.8S, in the temperature range 20 to 500 C under controlled sulfur partial pressure, European Journal of Mineralogy, 14, 591-598
