Name: Jamesonite
RRUFF ID: R050481
Ideal Chemistry: Pb4FeSb6S14
Locality: Itos mine, Oruro City, Bolivia
Source: California Institute of Technology
Owner: RRUFF
Description: A group of gray-black thickly acicular crystals
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis
Quick search: [ All Jamesonite samples (4) ]
CHEMISTRY
RRUFF ID: R050481.2
Sample Description: Microprobe Fragment
Measured Chemistry: Pb4.00Fe1.00(Sb5.97As0.03)Σ=6S14.00
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample. The sample did not burn under the laser.
Instrument settings: Thermo Almega XR 785nm @ 10% of 500mW
DOWNLOADS:

Raman Data (Processed)
RRUFF File
Raman Data (RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:

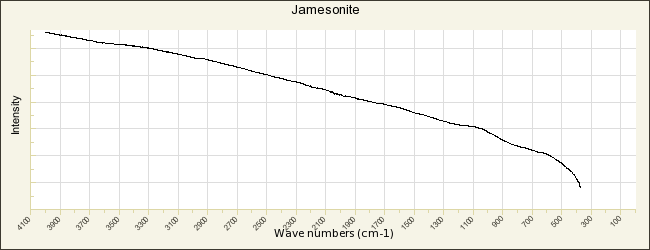

INFRARED SPECTRUM (Attenuated Total Reflectance)
RRUFF ID: R050481.1
Sample Description: Powder
Instrument settings: SensIR Durascope on a Nicolet Magna 860 FTIR
Resolution:
DOWNLOADS:

Infrared Data (Processed)
RRUFF File
X Min:    X Max:    X Sort:

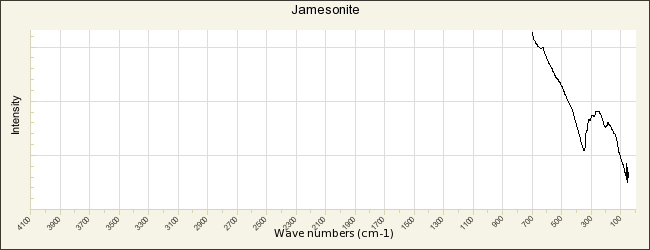

RRUFF ID: R050481.1
Sample Description: Powder
Instrument settings: PIKE GladiATR - Far-IR on a Nicolet Magna 860 FTIR
Resolution:
DOWNLOADS:

Infrared Data (Processed)
RRUFF File
X Min:    X Max:    X Sort:

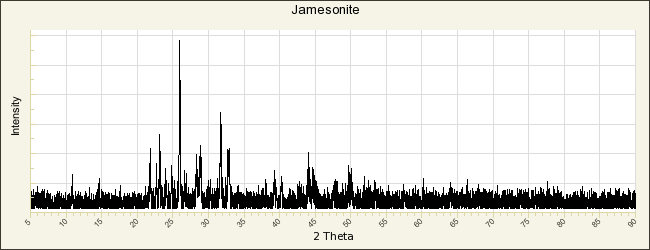

POWDER DIFFRACTION
RRUFF ID: R050481.1
Sample Description: Powder
Cell Refinement Output: a: 15.705(2)Å    b: 19.102(2)Å    c: 4.0271(4)Å
alpha: 90.°    beta: 91.79(1)°    gamma: 90.°   Volume: 1207.6(2)    Crystal System: monoclinic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

Cell Refinement Data
Cell Refinement Output Data
DIF File
X-ray Data (XY - Processed)
RRUFF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Jamesonite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Mohs F, Haidinger W (1825) XI. Order. Glance. VII. Antimony-glance. Jamesonite, in Treatise on Mineralogy, or the Natural History of the Mineral Kingdom, Volume 1 Archibald Constable and Co. Edinburgh 451-451   [view file]

Rose H (1826) Ueber die chemische zusammensetzung des zinkenits und des jamesonits, Annalen der Physik und Chemie, 8, 99-102   [view file]

Niizeki N, Buerger M J (1957) The crystal structure of jamesonite, FePb4Sb6S14, Zeitschrift für Kristallographie, 109, 161-183   [view file]

Fleischer M (1958) New mineral names, American Mineralogist, 43, 1219-1225   [view file]

Chang L L Y, Li X, Zheng C (1987) The jamesonite - benavidesite series, The Canadian Mineralogist, 25, 667-672   [view file]
