Manganilvaite R070334



Name: Manganilvaite
RRUFF ID: R070334
Ideal Chemistry: CaFe2+Fe3+Mn2+(Si2O7)O(OH)
Locality: First Sovetskiy mine, Dalnegorsk, Far East of Russia
Source: Michael Scott S100979 [view label]
Owner: RRUFF
Description: Black prismatic crystal
Status: The identification of this mineral has been confirmed by X-ray diffraction.
Mineral Group: [ Ilvaite (3) ]
CHEMISTRY
RRUFF ID: R070334.2
Sample Description: Microprobe Fragment
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.

Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R070334
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW

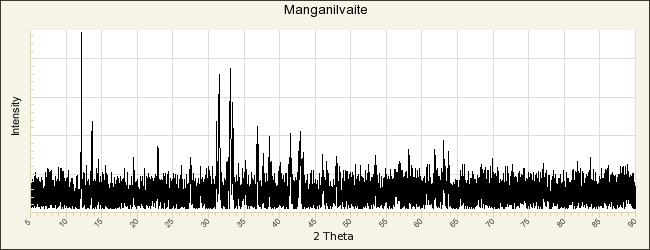

POWDER DIFFRACTION
RRUFF ID: R070334.1
Sample Description: Powder
Cell Refinement Output: a: 12.994(4)Å    b: 8.852(1)Å    c: 5.8427(4)Å
alpha: 90°    beta: 89.95(4)°    gamma: 90°   Volume: 672.0(2)Å3    Crystal System: monoclinic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

X Min:    X Max:    X Sort:
REFERENCES for Manganilvaite

American Mineralogist Crystal Structure Database Record: [view record]

Grice J D, Ferraris G (2003) New minerals approved in 2002 and nomenclature modifications approved in 1998-2002 by the Commission on the New Minerals and Mineral Names, International Mineralogical Association, The Canadian Mineralogist, 41, 795-802   [view file]

Bonev I K, Vassileva R D, Zotov N, Kouzmanov K (2005) Manganilvaite, CaFe2+Fe3+(Mn,Fe2+)(Si2O7)O(OH), a new mineral of the ilvaite group, from Pb-Zn skarn deposits in the Rhodope Mountains, Bulgaria: erratum, The Canadian Mineralogist, 43, 1443-1443   [view file]

Zotov N, Kockelmann W, Jacobsen S D, Mitov I, Paneva D, Vassileva R D, Bonev I K (2005) Structure and cation order in manganilvaite: a combined X-ray-diffraction, neutron-diffraction and Mössbauer study, The Canadian Mineralogist, 43, 1043-1053   [view file]

Locock A J, Piilonen P C, Ercit T S, Rowe R, Kolitsch U (2006) New mineral names, American Mineralogist, 91, 710-715   [view file]
