Manganvesuvianite R060377



Name: Manganvesuvianite
RRUFF ID: R060377
Ideal Chemistry: Ca19Mn3+Al10Mg2(SiO4)10(Si2O7)4O(OH)9
Locality: K'Chwaning II mine, Kalahari Manganese Field, north Cape Province, South Africa
Source: Michael Scott S100306 [view label]
Owner: RRUFF
Description: Deep reddish-brown prismatic crystals associated with black hausmannite
Status: The identification of this mineral has been confirmed by X-ray diffraction.
Mineral Group: [ Vesuvianite (12) ]
CHEMISTRY
RRUFF ID: R060377.2
Sample Description: Microprobe fragment
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented Raman on the primary sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.

Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R060377
Wavelength:
Sample Description: Unoriented Raman on the primary sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW

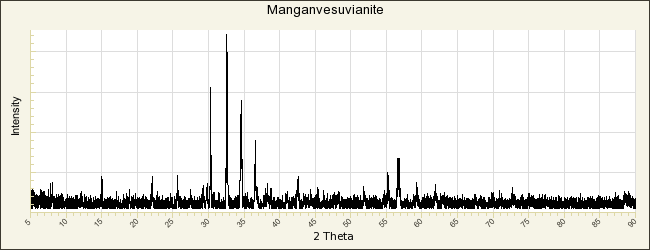

POWDER DIFFRACTION
RRUFF ID: R060377.1
Sample Description: Powder
Cell Refinement Output: a: 15.543(1)Å    b: 15.543(1)Å    c: 11.8002(6)Å
alpha: 90.°    beta: 90.°    gamma: 90.°   Volume: 2850.8(4)Å3    Crystal System: tetragonal
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

X Min:    X Max:    X Sort:
REFERENCES for Manganvesuvianite

American Mineralogist Crystal Structure Database Record: [view record]

Armbruster T, Gnos E, Dixon R, Gutzmer J, Hejny C, Döbelin N, Medenbach O (2002) Manganvesuvianite and tweddillite, two new Mn3+-silicate minerals, Mineralogical Magazine, 66, 137-150   [view file]

Mandarino J A (2002) New minerals, The Canadian Mineralogist, 40, 1527-1550   [view file]

Jambor J L, Roberts A C (2003) New mineral names, American Mineralogist, 88, 251-255   [view file]
