Okenite R070602
Name: Okenite
RRUFF ID: R070602
Ideal Chemistry: Ca5Si9O23·9H2O
Locality: Poona, Maharashtra, India
Source: James Shigley
Owner: RRUFF
Description: Mass of radiating white fibers
Status: The identification of this mineral has been confirmed by single-crystal X-ray diffraction.
CHEMISTRY
RRUFF ID: R070602.2
Sample Description: Microprobe Fragment
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R070602
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
DOWNLOADS:

Raman Data (Processed)
RRUFF File
Raman Data (RAW) View Graph
RRUFF File

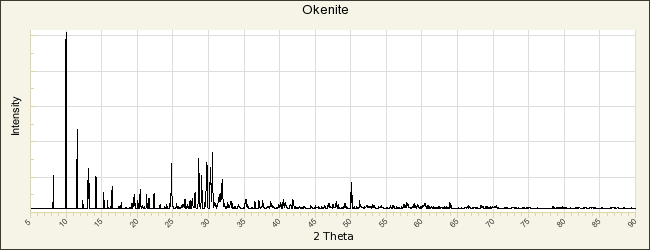

POWDER DIFFRACTION
RRUFF ID: R070602.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 9.690(3)Å    b: 7.290(1)Å    c: 22.013(7)Å
alpha: 92.655(1)°    beta: 100.09(1)°    gamma: 111.03(1)°   Volume: 1418(1)    Crystal System: triclinic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

DIF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Okenite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Merlino S (1983) Okenite, Ca10Si18O46 · 18H2O: the first example of a chain sheet silicate, American Mineralogist, 68, 614-622   [view file]
