Parabutlerite R060754

Browse Search Results
<< Previous |  Back to Search Results |  Next >>
Record 1 of 3


Name: Parabutlerite
RRUFF ID: R060754
Ideal Chemistry: Fe3+(SO4)(OH)·2H2O
Locality: Chuquicamata, Chile
Source: Michael Scott S101228 [view label]
Owner: RRUFF
Description: Aggregate of pale orange grains
Status: The identification of this mineral has been confirmed by X-ray diffraction.
Mineral Group: [ Not in a structural group (133) ]
Quick search: [ All Parabutlerite samples (3) ]
CHEMISTRY
RRUFF ID: R060754.2
Sample Description: Microprobe Fragment
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented massive yellow crystals
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R060754
Wavelength:
Sample Description: Unoriented massive yellow crystals
Instrument settings: Thermo Almega XR 532nm @ 20% of 150mW
DOWNLOADS:

Raman Data (RAW) View Graph
RRUFF File

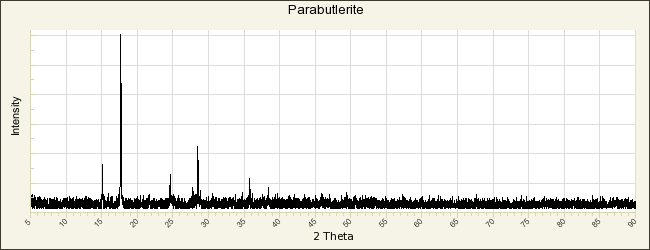

POWDER DIFFRACTION
RRUFF ID: R060754.1
Sample Description: Powder
Cell Refinement Output: a: 7.398(3)Å    b: 20.064(1)Å    c: 7.2281(9)Å
alpha: 90°    beta: 90°    gamma: 90°   Volume: 1072.8(4)Å3    Crystal System: orthorhombic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

Cell Refinement Data
Cell Refinement Output Data
DIF File
X-ray Data (XY - Processed)
RRUFF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Parabutlerite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Bandy M C (1938) Mineralogy of three sulphate deposits of Northern Chile, American Mineralogist, 23, 669-760   [view file]

Cesbron F (1964) Contribution à la minéralogie des sulphates de fer hydratés, Bulletin de la Société Française de Minéralogie et de Cristallographie, 87, 125-143   [view file]

Borène J (1970) Structure cristalline de la parabutlérite, Bulletin de la Société Française de Minéralogie et de Cristallographie, 93, 185-189   [view file]

Rossman G R (1976) Spectroscopic and magnetic studies of ferric iron hydroxy sulfates: the series Fe(OH)SO4·nH2O and jarosites, American Mineralogist, 61, 398-404   [view file]

Bariand P, Cesbron F, Berthelon J-P (1977) Les sulfates de fer de Saghand près de Yazd (Iran), Mémoire Hors-Série de la Société Géologique de France, 8, 77-85   [view file]

Scordari F (1981) Fibroferrite: a mineral with a {Fe(OH)(H2O)2SO4} spiral chain and its relationship to Fe(OH)SO4, butlerite and parabutlerite, Tschermaks Mineralogische und Petrographische Mitteilungen, 28, 17-29

Čejka J, Sejkora J, Plášil J, Bahfenne S, Palmer S J, Frost R L (2011) A vibrational spectroscopic study of hydrated Fe3+ hydroxyl-sulfates; polymorphic minerals butlerite and parabutlerite, Spectrochimica Acta Part A, 79, 1356-1363

Plášil J, Petříček V, Majzlan J (2017) A commensurately modulated structure of parabutlerite, FeιιιSO4(OH)·2H2O, Acta Crystallographica, B73, 856-862

Majzlan J, Dachs E, Benisek A, Plášil J, Sejkora J (2018) Thermodynamics, crystal chemistry and structural complexity of the Fe(SO4)(OH)(H2O)x phases: Fe(SO4)(OH), metahohmannite, butlerite, parabutlerite, amarantite, hohmannite, and fibroferrite, European Journal of Mineralogy, 30, 259-275
