Pseudomalachite R050597

Browse Search Results
<< Previous |  Back to Search Results |  Next >>
Record 3 of 3


Name: Pseudomalachite
RRUFF ID: R050597
Ideal Chemistry: Cu5(PO4)2(OH)4
Locality: Cerro Negro mine, Carrizalillo, Chile
Source: William W. Pinch [view label]
Owner: RRUFF
Description: Dark-green tabular crystals associated with chalcosiderite, R060007
Status: The identification of this mineral has been confirmed by single-crystal X-ray diffraction.
Quick search: [ All Pseudomalachite samples (3) ]
CHEMISTRY
RRUFF ID: R050597.2
Sample Description: Microprobe fragment
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented Sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R050597
Wavelength:
Sample Description: Unoriented Sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
DOWNLOADS:

Raman Data (Processed)
RRUFF File
Raman Data (RAW) View Graph
RRUFF File

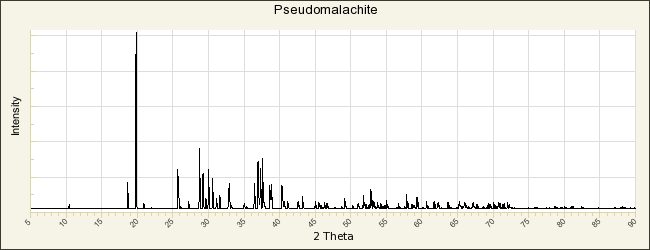

POWDER DIFFRACTION
RRUFF ID: R050597.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 4.473(3)Å    b: 5.742(3)Å    c: 16.968(11)Å
alpha: 90°    beta: 90.97(4)°    gamma: 90°   Volume: 435.76(16)    Crystal System: monoclinic
  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

X-ray Data (XY - Processed)
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Pseudomalachite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Anderson J B, Shoemaker G L, Kostiner E, Ruszala F A (1977) The crystal structure of synthetic Cu5(PO4)2(OH)4, a polymorph of pseudomalachite, American Mineralogist, 62, 115-121   [view file]

Shoemaker G L, Anderson J B, Kostiner E (1977) Refinement of the crystal structure of pseudomalachite, American Mineralogist, 62, 1042-1048   [view file]

Jambor J L, Bladh K W, Ercit T S, Grice J D, Grew E S (1988) New mineral names, American Mineralogist, 73, 927-935   [view file]

Frost R L, Kloprogge T, Williams P A, Martens W, Johnson T E, Leverett P (2002) Vibrational spectroscopy of the basic copper phosphate minerals: pseudomalachite, ludjibaite and reichenbachite, Spectrochimica Acta Part A-Molecular and Biomolecular Spectroscopy, 58, 2861-2868   [link]

Frost R L, Williams P A, Martens W, Kloprogge J T, Leverett P (2002) Raman spectroscopy of the basic copper phosphate minerals cornetite, libethenite, pseudomalachite, reichenbachite and ludjibaite, Journal of Raman Spectroscopy, 33, 260-263   [link]

Martens W, Frost R L (2003) An infrared spectroscopic study of the basic copper phosphate minerals: cornetite, libethenite, and pseudomalachite, American Mineralogist, 88, 37-46   [view file]

Martens W N, Frost R L, Williams P A (2003) The basic copper phosphate minerals pseudomalachite, ludjibaite and reichenbachite: an infrared emission and Raman spectroscopic study, Neues Jahrbuch für Mineralogie, Monatshefte, 2003, 337-362

Plášil J, Sejkora J, Cejka J, Škoda R, Goliáš V (2009) Supergene mineralization of the Medvedín uranium deposit, Krkonoše Mountains, Czech Republic, Journal of Geosciences, 54, 15-56
