Wöhlerite R050275



Name: Wöhlerite
RRUFF ID: R050275
Ideal Chemistry: NaCa2(Zr,Nb)(Si2O7)(O,F)2
Locality: Langesundsfjord, Norway
Source: Marcus Origlieri
Owner: RRUFF
Description: Yellowish brown granular
Status: The identification of this mineral has been confirmed by X-ray diffraction.
Mineral Group: [ Wohlerite (11) ]
Quick search: [ All Wöhlerite samples (2) ]
CHEMISTRY
RRUFF ID: R050275.2
Sample Description: Microprobe Fragment
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.

Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R050275
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW

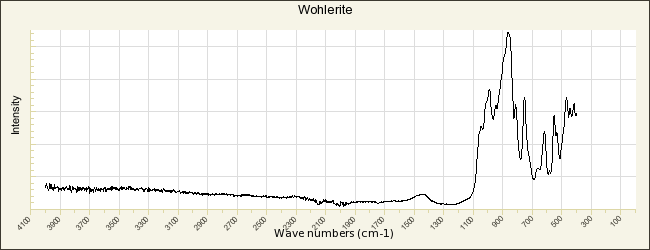

INFRARED SPECTRUM (Attenuated Total Reflectance)
RRUFF ID: R050275.1
Instrument settings: SensIR Durascope on a Nicolet Magna 860 FTIR
Resolution:
X Min:    X Max:    X Sort:

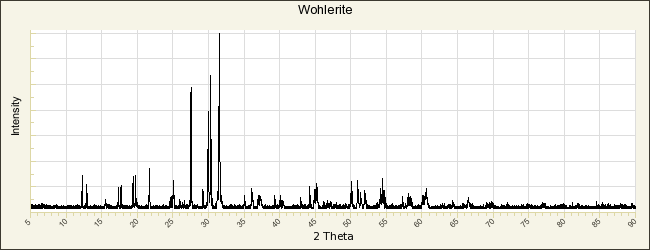

POWDER DIFFRACTION
RRUFF ID: R050275.1
Sample Description: Powder
Cell Refinement Output: a: 10.8248(7)Å    b: 10.2481(6)Å    c: 7.2903(5)Å
alpha: 90°    beta: 109.003(5)°    gamma: 90°   Volume: 764.66(6)Å3    Crystal System: monoclinic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

X Min:    X Max:    X Sort:
REFERENCES for Wöhlerite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Scheerer T (1843) Ueber den Wöhlerit, eine neue Mineralspecies, Annalen der Physik und Chemie, 59, 327-336   [view file]

Shibayeva R I, Belov N V (1960) Crystal structure of wöhlerite, Ca2Na(Zr,Nb)Si2O7(O,F)2, Doklady Akademii Nauk SSSR, 146, 897-900   [view file]

Fleischer M (1961) New mineral names, American Mineralogist, 46, 241-244   [view file]

Golyshev M, Otroshchenko L P, Simonov V I, Belov N V (1973) Refining the atomic structure of wöhlerite, NaCa2(Zr,Nb)[Si2O7](F,O)2, Soviet Physics - Doklady, 18, 287-289

Mellini M, Merlino S (1979) Refinement of the crystal structure of wöhlerite, Tschermaks Mineralogische und Petrographische Mitteilungen, 26, 109-125

Merlino S, Perchiazzi N (1988) Modular mineralogy of the cuspidine group of minerals, The Canadian Mineralogist, 26, 933-943   [view file]

Mariano A N, Roeder P L (1989) Wöhlerite: Chemical composition, cathodoluminescence and environment of crystallization, The Canadian Mineralogist, 27, 709-720   [view file]

Chakhmouradian A R, Mitchell R H (2009) Marianoite, a new member of the cuspidine group from the Prairie Lake silicocarbonatite, Ontario: Reply, The Canadian Mineralogist, 47, 1280-1282   [view file]

Merlino S, Mellini M (2009) Marianoite, a new member of the cuspidine group from the Prairie Lake silicocarbonatite, Ontario: Discussion, The Canadian Mineralogist, 47, 1275-1279   [view file]

Bellezza M, Merlino S, Perchiazzi N (2012) Distinct domains in "guarinite" from Monte Somma, Italy: Crystal structures and crystal chemistry, The Canadian Mineralogist, 50, 531-548   [view file]

Biagioni C, Merlino S, Parodi G C, Perchiazzi N (2012) Crystal chemistry of minerals of the wöhlerite group from the Los Archipelago, Guinea, The Canadian Mineralogist, 50, 593-609   [view file]
