Baumhauerite R050429
Name: Baumhauerite
RRUFF ID: R050429
Ideal Chemistry: Pb12As16S36
Locality: Binntal, Valais, Switzerland
Source: University of Arizona Mineral Museum 2862 [view label]
Owner: RRUFF
Description: Lead gray metallic with iridescent tarnish and conchoidal fracture
Status: The identification of this mineral has been confirmed only by single crystal X-ray diffraction.
CHEMISTRY
RRUFF ID: R050429.2
Sample Description: Microprobe Fragment
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R050429
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 16% of 150mW
DOWNLOADS:

Raman Data (Processed)
RRUFF File
Raman Data (RAW) View Graph
RRUFF File

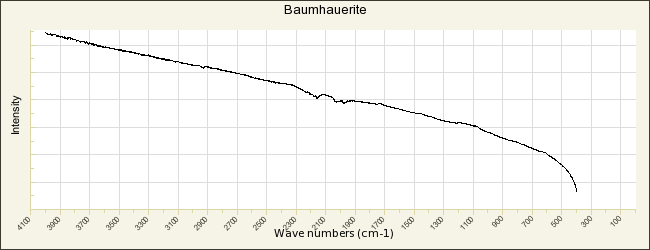

INFRARED SPECTRUM (Attenuated Total Reflectance)
RRUFF ID: R050429.1
Instrument settings: SensIR Durascope on a Nicolet Magna 860 FTIR
Resolution:
DOWNLOADS:

Infrared Data (Processed)
RRUFF File
X Min:    X Max:    X Sort:

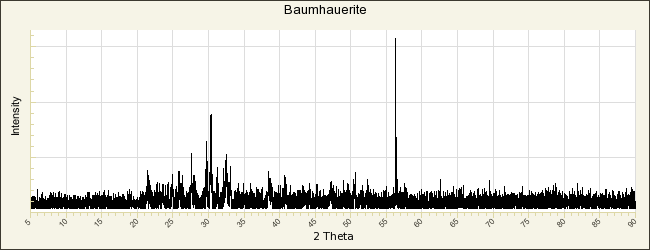

POWDER DIFFRACTION
RRUFF ID: R050429.1
Sample Description: Powder, cell parameters from single crystal work
Cell Refinement Output: a: 22.795(8)Å    b: 8.352(3)Å    c: 7.890(3)Å
alpha: 90.07(1)°    beta: 97.35(1)°    gamma: 89.89(1)°   Volume: 1490(2)    Crystal System: triclinic
  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

X-ray Data (XY - Processed)
RRUFF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Baumhauerite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Solly R H (1902) Sulpharsenites of lead from the Binnenthal. Part III. Baumhauerite, a new mineral; and dufrenoysite, Mineralogical Magazine, 13, 151-171   [view file]

Le Bihan M T (1961) Contribution à l'étude structurale des sulfures d'arsenic et de plomb. Structure de la baumhauerite, Acta Crystallographica, 14, 1210-1211

Engel P, Nowacki W (1969) Die kristallstruktur von baumhauerit, Zeitschrift für Kristallographie, 129, 178-202   [view file]

Pring A (1990) Disordered intergrowths in lead-arsenic sulfide minerals and the paragenesis of the sartorite-group minerals, American Mineralogist, 75, 289-294   [view file]

Pring A (2001) The crystal chemistry of the sartorite group minerals from Lengenbach, Binntal, Switzerland—a HRTEM study, Schweizerische Mineralogische und Petrographische Mitteilungen, 81, 69-87

Roth P (2007) Baumhauerite, in Minerals first discovered in Switzerland and minerals named after Swiss individuals Kristallografik Verlag Achberg Germany 38-39
