Bindheimite R050546



Name: Bindheimite
RRUFF ID: R050546
Ideal Chemistry: Pb2Sb5+2O7
Locality: Arabia District, Pershing County, Nevada, USA
Source: University of Arizona Mineral Museum 4882 [view label]
Owner: RRUFF
Description: Yellow-brown coarsely fibrous massive, intimately mixed with mimetite
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis
Mineral Group: [ pyrochlore (28) ]
CHEMISTRY
RRUFF ID: R050546.2
Sample Description: Microprobe Fragment
Measured Chemistry: (Pb1.33Fe0.47Ca0.20)Σ=2(Sb5+1.97As5+0.03)Σ=2O7 ;(darker phase, with trace amounts of Na); (Pb4.07Ca0.92Fe0.01)Σ=5((As2.97Sb0.03)Σ=1O4)3Cl1.00 (lighter phase = mimetite)
Microprobe Data File: [ Download Excel File ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.

Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R050546
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 50% of 150mW

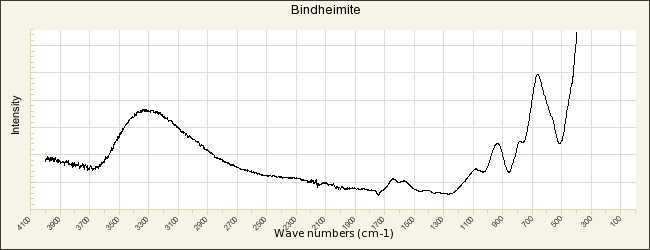

INFRARED SPECTRUM (Attenuated Total Reflectance)
RRUFF ID: R050546.1
Instrument settings: SensIR Durascope on a Nicolet Magna 860 FTIR
Resolution:
X Min:    X Max:    X Sort:
POWDER DIFFRACTION
RRUFF ID: R050546.1
Sample Description: Powder
Cell Refinement Output: a: 10.4424(8)Å    b: 10.4424(8)Å    c: 10.4424(8)Å
alpha: 90°    beta: 90°    gamma: 90°   Volume: 1138.7(3)Å3    Crystal System: cubic
  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

X Min:    X Max:    X Sort:
REFERENCES for Bindheimite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Karsten D L G (1800) Anmerkungen, in Mineralogische Tabellen Heinrich August Rottmann Berlin 77-77   [view file]

Dana J D, Brush G J (1868) 586. Bindheimite, in A System of Mineralogy, Fifth Edition John Wiley and Sons New York 591-591   [view file]

Natta G, Baccaredda M (1933) Tetrossido di antimonio e antimoniati, Zeitschrift für Kristallographie, 85, 271-296   [view file]

Mason B, Vitaliano C J (1952) The mineralogy of the antimony oxides and antimonates, Mineralogical Magazine, 30, 100-112   [view file]

Gasperin M (1955) Synthèse et identification de deux oxydes doubles de tantale et d'étain, Comptes Rendus Hebdomadaires des Séances de l'Académie des Sciences, 240, 2340-2342   [view file]

Welin E (1968) Notes on the mineralogy of Sweden 6. X-ray powder data for minerals from Långban and the related mineral deposits of Central Sweden, Arkiv för Mineralogi och Geologi, 4, 499-541

Christy A G, Gatedal K (2005) Extremely Pb-rich rock-forming silicates including a beryllian scapolite and associated minerals in a skarn from Långban, Värmland, Sweden, Mineralogical Magazine, 69, 995-1018   [view file]

Atencio D, Andrade M B, Christy A G, Gieré R, Kartashov P M (2010) The pyrochlore supergroup of minerals: nomenclature, The Canadian Mineralogist, 48, 673-698   [view file]

Christy A G, Atencio D (2013) Clarification of status of species in the pyrochlore supergroup, Mineralogical Magazine, 77, 13-20   [view file]
