Eudialyte R060035



Name: Eudialyte
RRUFF ID: R060035
Ideal Chemistry: Na15Ca6Fe3Zr3Si(Si25O73)(O,OH,H2O)3(Cl,OH)2
Locality: Chibini, Kola Peninsula, Russia
Source: University of Arizona Mineral Museum 9530 [view label]
Owner: RRUFF
Description: Deep pink coarsely crystalline
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis
Mineral Group: [ eudialyte (12) ]
Quick search: [ All Eudialyte samples (3) ]
CHEMISTRY
RRUFF ID: R060035.2
Sample Description: Microprobe fragment
Measured Chemistry: (Na14.86K0.14)Σ=15Ca6.00(Fe1.52Mn1.48)Σ=3(Zr2.82Ti0.18)Σ=3(Si0.93Nb0.07)Σ=1(Si25.00O73)((OH)1.01(H2O)1.99)Σ=3(Cl1.65(OH)0.35)Σ=2
RAMAN SPECTRUM
RRUFF ID:
Sample Description: sample is oriented and mounted onto a pin.
Pin ID: M00465
Orientation: Laser parallel to  a*  (1 0 0).     Fiducial mark perpendicular to laser is parallel to  c   [0 0 1].
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.

Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R060035
Wavelength:
Sample Description: Unoriented sample; 780 spectrum is overwhelmed by fluorescence
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW

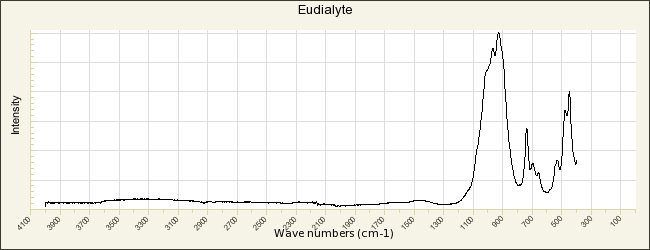

INFRARED SPECTRUM (Attenuated Total Reflectance)
RRUFF ID: R060035.1
Sample Description: Powder
Instrument settings: SensIR Durascope on a Nicolet Magna 860 FTIR
Resolution:
X Min:    X Max:    X Sort:
POWDER DIFFRACTION
RRUFF ID: R060035.1
Sample Description: Powder
Cell Refinement Output: a: 14.2337(3)Å    b: 14.2337(3)Å    c: 30.202(1)Å
alpha: 90°    beta: 90°    gamma: 120°   Volume: 5299.0(0)Å3    Crystal System: hexagonal
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

X Min:    X Max:    X Sort:
REFERENCES for Eudialyte

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Stromeyer F (1819) Summary of meeting 16 December 1819, Göttingische Gelehrte Anzeigen, 3, 1993-2000   [view file]

Lorenzen J (1882) On some minerals from the sodalite-syenite in the Juliane-haab district, south Greenland, Mineralogical Magazine, 5, 49-70   [view file]

Milton C (1965) Note on the occurrence of eudialyte in Canada, The Canadian Mineralogist, 8, 382-383   [view file]

Golyshev V M, Simonov V I, Belov N V (1971) Crystal structure of eudialite, Soviet Physics - Crystallography, 16, 70-74   [view file]

Edgar A D, Blackburn C E (1972) Eudialyte from the Kipawa Lake area, Temiscamingue CO., Quebec, The Canadian Mineralogist, 11, 554-559   [view file]

Golyshev V M, Simonov V I, Belov N V (1973) Crystal structure of eudialyte, Soviet Physics - Crystallography, 17, 993-996   [view file]

Harris C, Rickard R S (1987) Rare-earth-rich eudialyte and dalyite from a peralkaline granite dyke at Straumsvola, Dronning Maud Land, Antarctica, The Canadian Mineralogist, 25, 755-762   [view file]

Johnsen O, Grice J D (1999) The crystal chemistry of the eudialyte group, The Canadian Mineralogist, 37, 865-891   [view file]

Jambor J L, Roberts A C (2001) New mineral names, American Mineralogist, 86, 939-942   [view file]

Johnsen O, Ferraris G, Gault R A, Grice J D, Kampf A R, Pekov I V (2003) The nomenclature of eudialyte-group minerals, The Canadian Mineralogist, 41, 785-794   [view file]

Rastsvetaeva R K, Rozenberg K A, Khomyakov A P (2009) Crystal structure of high-silica K,Na-ordered acentric eudialyte analogue, Doklady Chemistry, 424, 11-14   [view file]

Rozenberg K A, Rastsvetaeva R K, Verin I A (2009) Crystal structure of centrosymmetric 12-layer sodium-rich eudialyte, Crystallography Reports, 54, 413-417

Rastsvetaeva R K, Chukanov N V (2012) Classification of eudialyte-group minerals, Geology of Ore Deposits, 54, 487-497   [view file]

Estrade G, Salvi S, Béziat D (2018) Crystallization and destabilization of eudialyte-group minerals in peralkaline granite and pegmatite: a case study from the Ambohimirahavavy complex, Madagascar, Mineralogical Magazine, 82, 375-399

Turner D J, Rivard B, Groat L A (2018) Visible and short-wave infrared reflectance spectoscopy of selected REE-bearing silicate minerals, American Mineralogist, 103, 927-943
