Catapleiite R060198


Name: Catapleiite
RRUFF ID: R060198
Ideal Chemistry: Na2Zr(Si3O9)·2H2O
Locality: Mont Saint-Hilaire, Rouville County, Quebec, Canada
Source: Royal Ontario Museum M49592
Owner: RRUFF
Description: Tan colored pseudohexagonal tabular crystals
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis
Mineral Group: [ Catapleiite (3) ]
Quick search: [ All Catapleiite samples (3) ]
CHEMISTRY
RRUFF ID: R060198.2
Sample Description: Microprobe fragment
Measured Chemistry: (Na1.92Ca0.04   0.04)Σ=2Zr1.00Si3.00O9·2H2O
Microprobe Data File: [ Download Excel File ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Sample is oriented and mounted onto a pin.
Pin ID: L01561
Orientation: Laser parallel to  b*  (0 1 0).     Fiducial mark perpendicular to laser is parallel to  c   [0 0 1].
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.

Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R060198
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW

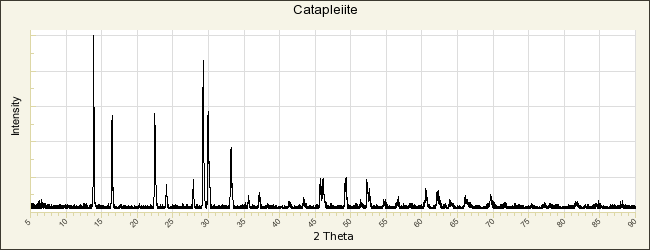

POWDER DIFFRACTION
RRUFF ID: R060198.1
Sample Description: Powder
Cell Refinement Output: a: 7.4186(8)Å    b: 12.830(1)Å    c: 10.0971(9)Å
alpha: 90°    beta: 90°    gamma: 90°   Volume: 961.0(1)Å3    Crystal System: orthorhombic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

X Min:    X Max:    X Sort:
REFERENCES for Catapleiite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Weibye P H, Berlin N J, Sjogren K A, Borck J B (1850) Neue mineralien aus Norwegen, Annalen der Physik und Chemie, 79, 299-304   [view file]

Flink G (1893) Om några mineral från Grönland, Geologiska Föreningens i Stockholm Förhandlingar, 15, 195-208   [view file]

Foshag W F (1923) Catapleiite from Magnet Cove, Arkansas, American Mineralogist, 8, 70-72   [view file]

Pendlebury G B (1964) Catapleiite from St. Hilaire mountain, Quebec, The Canadian Mineralogist, 8, 120-121   [view file]

Chao G Y (1973) The crystal structure of catapleiite, Abstracts from the 1973 general meeting of the Geological Society of America, Dallas, 1973, 572-572   [view file]

Chen T T (1973) Twinning in catapleiite, Abstracts from the 1973 general meeting of the Geological Society of America, Dallas, 1973, 573-574   [view file]

Ilyushin G D, Voronkov A A, Ilyukhin V V, Nevskii N N, Belov N V (1981) Crystal structure of natural monoclinic catapleiite, Na2ZrSi3O9·2H2O, Soviet Physics Doklady Akademii Nauk SSSR, 260, 623-627   [link]   [view file]
