Wiluite R060513



Name: Wiluite
RRUFF ID: R060513
Ideal Chemistry: Ca19(Al,Mg)13(B,   ,Al)5(SiO4)10(Si2O7)4(O,OH)10
Locality: Wilui River, Sakha Republic, Russian Federation
Source: Michael Scott S100136 [view label]
Owner: RRUFF
Description: Dark green tetragonal prismatic
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis
Mineral Group: [ Vesuvianite (12) ]
Quick search: [ All Wiluite samples (2) ]
CHEMISTRY
RRUFF ID: R060513.2
Sample Description: Microprobe fragment
Measured Chemistry: Ca19.00(Al7.90Mg4.67Ti0.43)Σ=13(B3.00   2.00)Σ=5Si18.00O68(O7.76(OH)2.24)Σ=10 ; B not measured but estimated by charge balance.
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.

Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R060513
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW

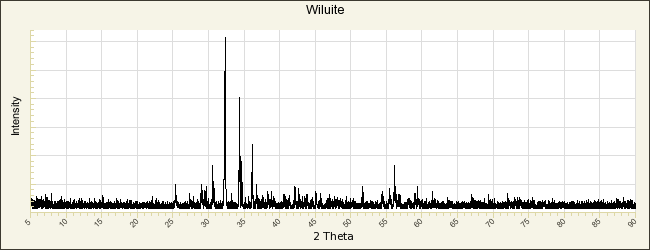

POWDER DIFFRACTION
RRUFF ID: R060513.1
Sample Description: Powder
Cell Refinement Output: a: 15.7325(5)Å    b: 15.7325(5)Å    c: 11.7010(6)Å
alpha: 90.°    beta: 90.°    gamma: 90.°   Volume: 2896.1(2)Å3    Crystal System: tetragonal
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

X Min:    X Max:    X Sort:
REFERENCES for Wiluite

American Mineralogist Crystal Structure Database Record: [view record]

Groat L A, Hawthorne F C, Ercit T S (1994) The incorporation of boron into the vesuvianite structure, The Canadian Mineralogist, 32, 505-523   [view file]

Groat L A, Hawthorne F C, Ercit T S, Grice J D (1998) Wiluite, Ca19(Al,Mg,Fe,Ti)13(B,Al,   )5Si18O68(O,OH)10, a new mineral species isostructural with vesuvianite, from the Sakha Republic, Russian Federation, The Canadian Mineralogist, 36, 1301-1304   [view file]

Jambor J L, Roberts A C (1999) New mineral names, American Mineralogist, 84, 1464-1468   [view file]

Galuskin E V, Galuskina I O (2000) Wiluite, Ca19(Al,Mg,Fe,Ti)13(B,Al,    )5Si18O68(O,OH)10, a new mineral species isostructural with vesuvianite, from the Sakha Republic, Russian Federation: discussion, The Canadian Mineralogist, 38, 763-764   [view file]

Galuskin E V, Galuskina I O, Sitarz M, Stadnicka K (2003) Si-deficient, OH-substituted, boron-bearing vesuvianite from the Wiluy River, Yakutia, Russia, The Canadian Mineralogist, 41, 833-842   [view file]

Bellatreccia F, Cámara F, Ottolini L, Della Ventura G, Cibin G, Mottana A (2005) Wiluite from Ariccia, Latium, Italy: occurrence and crystal structure, The Canadian Mineralogist, 43, 1457-1468   [view file]

Pekov I V (2007) New minerals from former Soviet Union countries, 1998-2006: new minerals approved by the IMA commission on new minerals and mineral names, Mineralogical Almanac, 11, 9-51   [view file]

Groat L A, Evans R J, Cempírek J, McCammon C, Houzar S (2013) Fe-rich and As-bearing vesuvianite and wiluite from Kozlov, Czech Republic, American Mineralogist, 98, 1330-1337
