Diopside R060861


Name: Diopside
RRUFF ID: R060861
Ideal Chemistry: CaMgSi2O6
Locality: Red Mountain Volcano, NW of Flagstaff, Arizona, USA
Source: Jennifer Sano
Owner: RRUFF
Description: Worn brown fragment
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis
Mineral Group: [ pyroxene (79) ]
Quick search: [ All Diopside samples (19) ]
CHEMISTRY
RRUFF ID: R060861.2
Sample Description: Microprobe Fragment
Measured Chemistry: (Ca0.72Fe2+0.23Na0.05)Σ=1(Mg0.80Al0.15Ti0.03Fe3+0.02)Σ=1(Si1.82Al0.18)Σ=2O6
Microprobe Data File: [ Download Excel File ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Sample is oriented and mounted on a pin.
Pin ID: M00947
Orientation: Laser parallel to  a*  (1 0 0).     Fiducial mark perpendicular to laser is parallel to  b   [0 1 0].
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.

Raman Mode Analysis
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R060861
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW

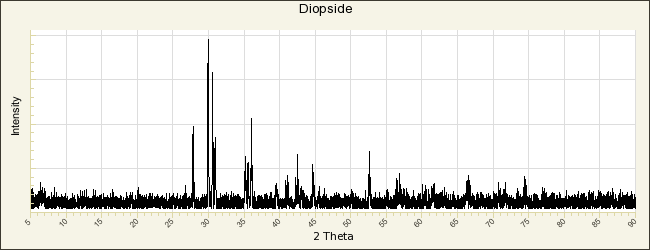

POWDER DIFFRACTION
RRUFF ID: R060861.1
Sample Description: powder
Cell Refinement Output: a: 9.7197(3)Å    b: 8.8655(3)Å    c: 5.2747(3)Å
alpha: 90°    beta: 106.556(4)°    gamma: 90°   Volume: 435.68(2)Å3    Crystal System: monoclinic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

X Min:    X Max:    X Sort:
REFERENCES for Diopside

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

d’Andrada J B (1800) Der eigenschaften und kennzeichen einiger neuen fossilien aus Schweden und Norwegen nebst einigen chemischen bemerkungen ueber dieselben, Allgemeines Journal der Chemie, 4, 28-39   [view file]

d’Andrada J B (1801) Description of some new fossils (Old English translation), A Journal of Natural Philosophy, Chemistry, and the Arts, 5, 193-196; 211-213   [view file]

Dana E S (1904) Monoclinic Section. Pyroxene, in The System of Mineralogy of James Dwight Data 1837-1868, Sixth Edition John Wiley & Sons New York 352-371   [view file]

Washington H S, Merwin H E (1927) The acmitic pyroxenes, The American Mineralogist, 12, 233-252

Bannister F A (1932) Proceedings of societies: Mineralogical Society of Great Britian and Ireland, American Mineralogist, 17, 455-455   [view file]

Aleksandrov K S, Ryzhova T V, Belikov B P (1964) The elastic properties of pyroxenes, Soviet Physics - Crystallography, 8, 589-591   [view file]

Grubb P L C (1965) An unusual occurrence of diopside and uvarovite near Thetford, Quebec, The Canadian Mineralogist, 8, 241-248   [view file]

Clark J R, Appleman D E, Papike J J (1969) Crystal-chemical characterization of clinopyroxenes based on eight new structure refinements, Mineralogical Society of America Special Paper, 2, 31-50   [view file]

Nolan J (1969) Physical properties of synthetic and natural pyroxenes in the system diopside-hedenbergite-acmite, Mineralogical Magazine, 37, 216-229   [view file]

Rutstein M S, Yund R A (1969) Unit-cell parameters of synthetic diopside-hedenbergite solid solutions, American Mineralogist, 54, 238-245   [view file]

Sood M K, Platt R G, Edgar A D (1970) Phase relations in portions of the system diopside-nepheline-kalsilite-silica and their importance in the genesis of alkaline rocks, The Canadian Mineralogist, 10, 380-394   [view file]

Cameron M, Sueno S, Prewitt C T, Papike J J (1973) High-temperature crystal chemistry of acmite, diopside, hedenbergite, jadeite, spodumene, and ureyite, American Mineralogist, 58, 594-618   [view file]

Turnock A C, Lindsley D H, Grover J E (1973) Synthesis and unit cell parameters of Ca-Mg-Fe pyroxenes, American Mineralogist, 58, 50-59   [view file]

Cameron M, Papike J J (1981) Structural and chemical variations in pyroxenes, American Mineralogist, 66, 1-50   [view file]

LeAnderson P J (1981) Calculation of temperature and X(CO2) values for tremolite—K–feldspar—diopside—epidote assemblages, The Canadian Mineralogist, 19, 619-630   [view file]

Levien L, Prewitt C T (1981) High-pressure structural study of diopside, American Mineralogist, 66, 315-323   [view file]

Morimoto N (1988) Nomenclature of pyroxenes, Mineralogical Magazine, 52, 535-550   [view file]

Wang X, Greenwood H J (1988) An experimental study of the equilibrium: grossular + clinochlore = 3 diopside + 2 spinel + 4 H2O, The Canadian Mineralogist, 26, 269-281   [view file]

Cheng W, Greenwood H J (1989) The stability of the assemblage zoisite + diopside, The Canadian Mineralogist, 27, 657-662   [view file]

Dickinson J E, Scarfe C M (1990) Raman spectroscopic study of glasses on the join diopside-albite, Geochimica et Cosmochimica Acta, 54, 1037-1043   [link]

Raudsepp M, Hawthorne F C, Turnock A C (1990) Evaluation of the Rietveld method for the characterization of fine-grained products of mineral synthesis: the diopside-hedenbergite join, The Canadian Mineralogist, 28, 93-109   [view file]

Raudsepp M, Hawthorne F C, Turnock A C, (1990) Crystal chemistry of synthetic pyroxenes on the join CaNiSi2O6-CaMgSi2O6 (diopside): A Rietveld structure refinement study, American Mineralogist, 75, 1274-1281   [view file]

Lüttge A, Metz P (1991) Mechanism and kinetics of the reaction 1 dolomite + 2 quartz = 1 diopside + 2 CO2 investigated by powder experiments, The Canadian Mineralogist, 29, 803-821   [view file]

Swamy V, Dubrovinsky L, Matsui M (1997) High-temperature Raman spectroscopy and quasi-harmonic lattice dynamic simulation of diopside, Physics and Chemistry of Minerals, 24, 440-446   [link]

Richet P, Mysen B, Ingrin J (1998) High-temperature X-ray diffraction and Raman spectroscopy of diopside and pseudowollastonite, Physics and Chemistry of Minerals, 25, 401-414   [link]

Herd C D K, Peterson R C, Rossman G R (2000) Violet-colored diopside from southern Baffin Island, Nunavut, Canada, The Canadian Mineralogist, 38, 1193-1199   [view file]

Huang E, Chen C H, Huang T, Lin E H, Xu J (2000) Raman spectroscopic characteristics of Mg-Fe-Ca pyroxenes, American Mineralogist, 85, 473-479   [view file]

Prencipe M, Tribaudino M, Pavese A, Hoser A, Reehuis M (2000) A single-crystal neutron-diffraction investigation of diopside at 10 K, The Canadian Mineralogist, 38, 183-189   [view file]

Wang A, Jolliff B L, Haskin L A, Kuebler K E, Viskupic K M (2001) Characterization and comparison of structural and compositional features of planetary quadrilateral pyroxenes by Raman spectroscopy, American Mineralogist, 86, 790-806   [view file]

Weng Y H, Presnall D C (2001) The system diopside - forsterite - enstatite at 5.1 GPa: a ternary model for melting of the mantle, The Canadian Mineralogist, 39, 299-308   [view file]

Chopelas A, Serghiou G (2002) Spectroscopic evidence for pressure-induced phase transitions in diopside, Physics and Chemistry of Minerals, 29, 403-408   [link]

Nimis P (2002) The pressures and temperatures of formation of diamond based on thermobarometry of chromian diopside inclusions, The Canadian Mineralogist, 40, 871-884   [view file]

Shannon R D, Shannon R C, Medenbach O, Fischer R X (2002) Refractive index and dispersion of flourides and oxides, Journal of Physical and Chemical Reference Data, 31, 931-970

Akaogi M, Yano M, Tejima Y, Iijima M, Kojitani H (2004) High-pressure transition of diopside and wollastonite: phase equilibria and thermochemistry of CaMgSi2O6, CaSiO3 and CaSi2O5--CaTiSiO5 system, Physics of The Earth and Planetary Interiors, 143, 145-156

Thompson R M, Downs R T (2008) The crystal structure of diopside at pressure to 10 GPa, American Mineralogist, 93, 177-186   [view file]

Boffa Ballaran T, Nestola F, Tribaudino M, Ohashi H (2009) Bulk modulus variations along the diopside-kosmochlor solid solution, European Journal of Mineralogy, 21, 591-597

Buzatu A, Buzgar N (2010) The Raman study of single-chain silicates, Analele Stiintifice Ale Universitatii, Al. I. Cuza Iasi Geologie, 56, 107-125   [view file]

Plonka A M, Dera P, Irmen P, Rivers M L, Ehm L, Parise J B (2012) β-diopside, a new ultrahigh-pressure polymorph of CaMgSi2O6 with six-coordinated silicon, Geophysical Research Letters, 39, L24307, 1-4

Tribaudino M, Mantovani L, Bersani D, Lottici P P (2012) Raman spectroscopy of (Ca,Mg)MgSi2O6 clinopyroxenes, American Mineralogist, 97, 1339-1347   [view file]

Mantovani L, Tribaudino M, Mezzadri F, Calestani G, Bromiley G (2013) The structure of (Ca,Co)CoSi2O6 pyroxenes and the Ca-M2+ substitution in (Ca,M2+)M2+Si2O6 pyroxenes (M2+ = Co, Fe, Mg), American Mineralogist, 98, 1241-1252

Mantovani L, Tribaudino M, Bertoni G, Salvianti G, Bromiley G (2014) Solid solutions and phase transitions in (Ca,M2+)M2+Si2O6 pyroxenes (M2+ = Co, Fe, Mg), American Mineralogist, 99, 704-711

Yang Y, Xia Q, Zhang P (2015) Evolution of OH groups in diopside and feldspars with temperature, European Journal of Mineralogy, 27, 185-192

Nespolo M, Aroyo M I (2016) The modular structure of pyroxenes, European Journal of Mineralogy, 28, 189-203

Thompson R M, Yang H, Downs R T (2016) Ideal wollastonite and the structural relationship between the pyroxenoids and pyroxenes, American Mineralogist, 101, 2544-2553
