Fettelite R110042



Name: Fettelite
RRUFF ID: R110042
Ideal Chemistry: [Ag6As2S7][Ag10HgAs2S8]
Locality: Nieder-Beerbach mine near Darmstadt, Odenwald, Germany
Source: Institute of Mineralogy, University of Heidelberg [view label]
Owner: RRUFF
Description: Red hexagonal plates, type-sample. New data are reported in Bindi et al (2012)
Status: The identification of this mineral is confirmed by single-crystal X-ray diffraction and chemical analysis.
Quick search: [ All Fettelite samples (3) ]
CHEMISTRY
RRUFF ID: R110042.2
Sample Description: Microprobe Fragment
Measured Chemistry: Ag16.08Cu0.13Fe0.01Hg0.71As3.80S15.28
Microprobe Data File: [ Download Excel File ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented Raman on the primary sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.

Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R110042
Wavelength:
Sample Description: Unoriented Raman on the primary sample
Instrument settings: Thermo Almega XR 532nm @ 1% of 150mW

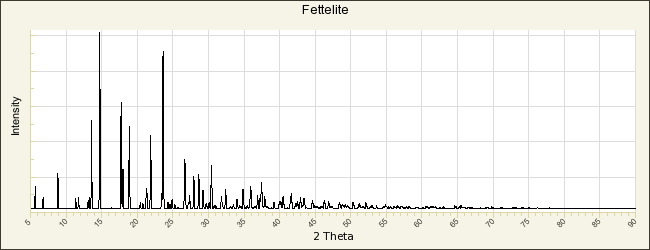

POWDER DIFFRACTION
RRUFF ID: R110042.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 15.058(5)Å    b: 15.058(5)Å    c: 15.576(8)Å
alpha: 90°    beta: 90°    gamma: 120°   Volume: 3059(1)Å3    Crystal System: hexagonal
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

X Min:    X Max:    X Sort:
REFERENCES for Fettelite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Wang N, Paniagua A (1996) Fettelite, a new Hg-sulfosalt mineral from Odenwald, Neues Jahrbuch für Mineralogie, Monatshefte, 1996, 313-320

Jambor J L, Puziewicz J, Roberts A C (1997) New mineral names, American Mineralogist, 82, 620-624   [view file]

Pérez-Priede M, Huguet X X, Blanco D M, Granda S G (2005) Going inside fettelite, a Hg-sulfosalt mineral, Acta Crystallographica, A61, C380-C380

Bindi L, Keutsch F N, Francis C A, Menchetti S (2009) Fettelite, [Ag6As2S7][Ag10HgAs2S8] from Chañarcillo, Chile: Crystal structure, pseudosymmetry, twinning, and revised chemical formula, American Mineralogist, 94, 609-615   [view file]

Bindi L, Menchetti S (2010) HT-study on fettelite, [Ag6As2S7][Ag10HgAs2S8]: ionic phase transition indicating the possible existance of different polytypes, Acta Mineralogica Petrographica Abstract Series. 20th General Meeting of the International Mineralogical Association 21-27 August, 2010. Budapest, Hungary, 6, 742-742   [view file]

Bindi L, Menchetti S (2011) Fast ion conduction character and ionic phase-transition in silver sulfosalts: The case of fettelite [Ag6As2S7][Ag10HgAs2S8], American Mineralogist, 96, 792-796   [view file]

Bindi L, Downs R T, Spry P G, Pinch W W, Menchetti S (2012) A chemical and structural re-examination of fettelite samples from the type locality, Odenwald, southwest Germany, Mineralogical Magazine, 76, 551-566   [view file]
