Mimetite R130731


Name: Mimetite
RRUFF ID: R130731
Ideal Chemistry: Pb5(AsO4)3Cl
Locality: Tsumeb mine, Tsumeb, Otavi District, Oshikoto, Namibia
Source: Bob Downs
Owner: RRUFF
Description: Pale yellow transparent hexagonal prisms, monoclinic polytype
Status: The identification of this mineral has been confirmed by single-crystal X-ray diffraction.
Mineral Group: [ Apatite (55) ]
Quick search: [ All Mimetite samples (6) ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R130731
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW

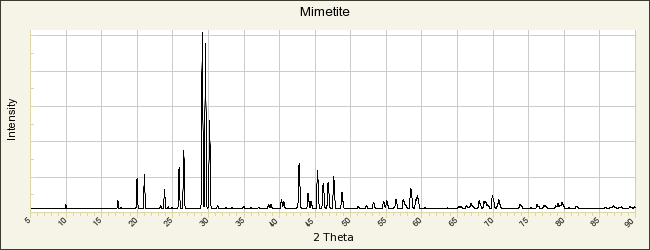

POWDER DIFFRACTION
RRUFF ID: R130731.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 10.2601(6)Å    b: 20.516(1)Å    c: 7.4674(5)Å
alpha: 90°    beta: 90°    gamma: 119.913(4)°   Volume: 1362.5(2)Å3    Crystal System: monoclinic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

X Min:    X Max:    X Sort:
REFERENCES for Mimetite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Beudant F S (1832) Mimetèse, plomb arséniaté, in Traité Élémentaire de Minéralogie, 2nd Edition Paris 594-595   [view file]

Fleischer M (1969) New mineral names, American Mineralogist, 54, 990-994   [view file]

Sumin de Portilla V I (1974) Infrared spectroscopic investigation of the structure of some natural arsenates and the nature of H-bonds in their structures, The Canadian Mineralogist, 12, 262-268   [view file]

Cesbron F, Williams S A (1980) Iranite-hémihédrite, bellite, phoenicochroite, vauquelinite et fornacite: synthèse et nouvelles données, Bulletin de Minéralogie, 103, 469-477   [view file]

Sokolova E V, Egorov-Tismenko Yu K (1982) Study of crystalline structures of rare arsenates: duftite and mimetite, Vestnik Moskovskogo Universiteta, Geologiya, 37, 50-56

Ginderow D (1988) Structure cristalline d´un chloro-silico-chromate de plomb, Pb5(CrO4,SiO4)3Cl, Zeitschrift für Kristallographie, 184, 185-190   [view file]

Dai Y, Hughes J M, Moore P B (1991) The crystal structures of mimetite and clinomimetite, Pb5(AsO4)3Cl, The Canadian Mineralogist, 29, 369-376   [view file]

Shannon R D, Shannon R C, Medenbach O, Fischer R X (2002) Refractive index and dispersion of fluorides and oxides, Journal of Physical and Chemical Reference Data, 31, 931-970   [view file]

Frost R L, Crane M, Williams P A, Kloprogge J T (2003) Isomorphic substitution in vanadinite [Pb5(VO4)3Cl]—a Raman spectroscopic study, Journal of Raman Spectroscopy, 34, 214-220

Baikie T, Ferraris C, Klooster W T, Madhavi S, Pramana S S, Pring A, Schmidt G, White T J (2008) Crystal chemistry of mimetite, Pb10(AsO4)6Cl1.48O0.26, and finnemanite, Pb10(AsO3)6Cl2, Acta Crystallographica, B64, 34-41   [view file]

Lyalina L M, Savchenko Y E, Selivanova E A, Zozulya D R (2010) Behoite and mimetite from the Saharjok alkaline intrusion, Kola Peninsula, Geology of Ore Deposits, 52, 641-645

Pasero M, Kampf A R, Ferraris C, Pekov I V, Rakovan J R, White T J (2010) Nomenclature of the apatite supergroup minerals, European Journal of Mineralogy, 22, 163-179   [view file]

Flis J, Manecki M, Bajda T (2011) Solubility of pyromorphite Pb5(PO4)3Cl - mimetite Pb5(AsO4)3Cl solid solution series, Geochimica et Cosmochimica Acta, 75, 1858-1868

Okudera H (2013) Relationships among channel typology and atomic displacements in the structures of Pb5(BO4)3Cl with B = P (pyromorphite), V (vanadinite), and As (mimetite), American Mineralogist, 98, 1573-1579

Markl G, Marks M A W, Holzäpfel J, Wenzel T (2014) Major, minor, and trace element composition of pyromorphite-group minerals as recorder of supergene weathering processes from the Schwarzwald mining district, SW Germany, American Mineralogist, 99, 1133-1146
