Hodgkinsonite R140280



Name: Hodgkinsonite
RRUFF ID: R140280
Ideal Chemistry: Zn2Mn2+(SiO4)(OH)2
Locality: Parker Shaft, Franklin mine, Franklin, Franklin Mining District, Sussex County, New Jersey, USA
Source: Marcus Origlieri S104179 [view label]
Owner: RRUFF
Description: Pinkish striated subhedral crystals, associated with franklinite and calcite
Status: The identification of this mineral has been confirmed by single-crystal X-ray diffraction.
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented Raman on the primary sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.

Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R140280
Wavelength:
Sample Description: Unoriented Raman on the primary sample
Instrument settings: Thermo Almega XR 532nm @ 1% of 150mW

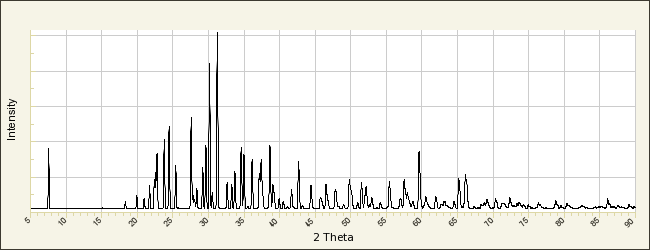

POWDER DIFFRACTION
RRUFF ID: R140280.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 8.187(1)Å    b: 5.315(1)Å    c: 11.761(3)Å
alpha: 90°    beta: 95.49(1)°    gamma: 90°   Volume: 509.4(2)Å3    Crystal System: monoclinic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

X Min:    X Max:    X Sort:
REFERENCES for Hodgkinsonite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Palache C, Schaller W T (1913) Hodgkinsonite, a new mineral from Franklin Furnace, N.J., Journal of the Washington Academy of Sciences, 3, 474-478   [view file]

Rentzeperis P J (1958) The unit cell and space group of hodgkinsonite, Acta Crystallographica, 11, 448-448

Roberts W M B, Quodling F M (1962) X-ray, optical, and morphological observations on hodgkinsonite from Franklin Furnace, Mineralogical Magazine, 33, 343-346   [view file]

Rentzeperis P J (1963) The crystal structure of hodgkinsonite Zn2Mn[(OH)2|SiO4], Zeitschrift für Kristallographie, 119, 117-138   [view file]

Solov'eva L P, Belov N V (1963) Crystal structure of hodgkinsonite Zn2Mn[SiO4](OH)2, Doklady Akademii Nauk SSSR, 152, 327-330   [view file]
