Tantalite-(Mn) R050600 - RRUFF Database: Raman, X-ray, Infrared, and Chemistry

Tantalite-(Mn) R050600

Name: Tantalite-(Mn)
RRUFF ID: R050600
Ideal Chemistry: Mn²⁺Ta₂O₆
Locality: Shengus, Pakistan
Source: Wayne Thompson
Owner: RRUFF
Description: Black tabular crystal associated with white albite and colorless quartz
Status: The identification of this mineral has been made only by X-ray diffraction.

Mineral Group: [ Columbite (32) ]

Quick search: [ All Tantalite-(Mn) samples (3) ]

CHEMISTRY

RRUFF ID:	R050600.2
Sample Description:	Microprobe fragment

RAMAN SPECTRUM

RRUFF ID:

Sample Description:

Unoriented sample

DOWNLOADS:

To download sample data,
please select a specific
orientation angle.

BROAD SCAN WITH SPECTRAL ARTIFACTS

RRUFF ID:

R050600

Wavelength:

Sample Description:

Unoriented sample

Instrument settings:

Thermo Almega XR 532nm @ 100% of 150mW

DOWNLOADS:

	Raman Data (Processed)
	RRUFF File
	Raman Data (RAW)
	RRUFF File

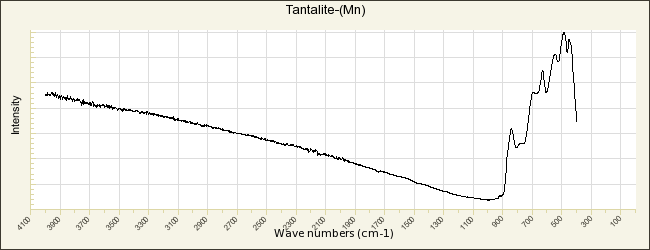

INFRARED SPECTRUM (Attenuated Total Reflectance)

RRUFF ID:

R050600.1

Instrument settings:

SensIR Durascope on a Nicolet Magna 860 FTIR

Resolution:

DOWNLOADS:

	Infrared Data (Processed)
	RRUFF File

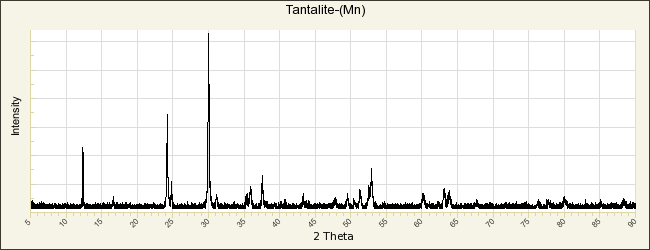

POWDER DIFFRACTION

RRUFF ID:

R050600.1

Sample Description:

Powder

Cell Refinement Output:

a: 14.3942(9)Å b: 5.7587(4)Å c: 5.0851(6)Å
alpha: 90.° beta: 90.° gamma: 90.° Volume: 421.52(4)Å³ Crystal System: orthorhombic

File Type Information

Calculated diffraction file.

File Type Information

Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

File Type Information

Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

	Cell Refinement Data
	Cell Refinement Output Data
	DIF File
	X-ray Data (XY - Processed)
	RRUFF File
	X-ray Data (XY - RAW)
	RRUFF File

REFERENCES for Tantalite-(Mn)
American Mineralogist Crystal Structure Database Record: [view record]
Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]
Thomson T (1836) On the minerals containing columbium, Records of General Science, 4, 407-419 [view file]
Nordenskiöld A E (1877) Mineralogiska meddelanden. 3. Tantalsyrade mineralier från Utö, Geologiska Föreningens i Stockholm Förhandlingar, 3, 282-286 [view file]
Quensel P, Berggren T (1938) Minerals of the Varuträsk pegmatite. XI. The niobate-tantalate group, Geologiska Föreningens i Stockholm Förhandlingar, 60, 216-221
Grice J D, Ferguson R B, Hawthorne F C (1976) The crystal structures of tantalite, ixiolite and wodginite from Bernic Lake, Manitoba I. Tantalite and ixiolite, The Canadian Mineralogist, 14, 540-549 [view file]
Klein S, Weitzel H (1976) Magnetische struktur von Mn(Nb_0.5Ta_0.5)₂O₆, manganotantalit, Acta Crystallographica, A32, 587-591
Ercit T S, Wise M A, Černý P (1995) Compositional and structural systematics of the columbite group, American Mineralogist, 80, 613-619 [view file]
dos Santos C A, Zawislak L I, Kinast E J, Antonietti V, da Cunha J B M (2001) Crystal chemistry and structure of the orthorhombic (Fe,Mn)(Ta,Nb)₂O₆ family of compounds, Brazilian Journal of Physics, 31, 616-631
Burke E A J (2008) Tidying up mineral names: an IMA-CNMNC scheme for suffixes, hyphens and diacritical marks, The Mineralogical Record, 39, 131-135 [view file]
McNeil A G, Linnen R L, Flemming R L (2015) Hydrothermal synthesis of columbite-(Mn), tantalite-(Mn), hafnon, and zircon at 800-850°C and 200MPa, The Canadian Mineralogist, 53, 1073-1081
Fuchsloch W C, Nex P A M, Kinnaird J A (2019) The geochemical evolution of Nb-Ta-Sn oxides from pegmatites of the Cape Cross-Uis pegmatite belt, Namibia, Mineralogical Magazine, 83, 161-179
Chukanov N, Pasero M, Aksenov S M, Britvin S N, Zubkova N V, Yike L, Witzke T (2023) Columbite supergroup of minerals: nomenclature and classification, Mineralogical Magazine, 87, 18-33
