Name: Volborthite
RRUFF ID: R070710
Ideal Chemistry: Cu3V2O7(OH)2·2H2O
Locality: Newmont Gold Mine, Carlin District, Elko Co., Nevada, USA
Source: Michael Scott S101530 [view label]
Owner: RRUFF
Description: Clusters of olive to yellowish green pseudohexagonal crystals
Status: The identification of this mineral has been confirmed by single-crystal X-ray diffraction.
Quick search: [ All Volborthite samples (3) ]
CHEMISTRY
RRUFF ID: R070710.2
Sample Description: Microprobe Fragment
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R070710
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
DOWNLOADS:

Raman Data (Processed)
RRUFF File
Raman Data (RAW) View Graph
RRUFF File

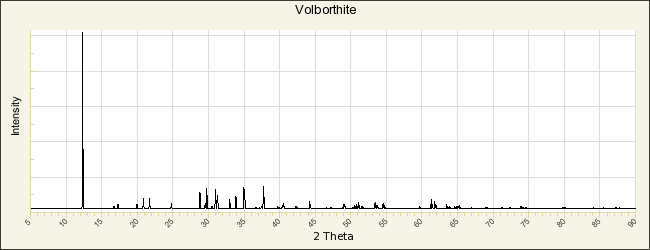

POWDER DIFFRACTION
RRUFF ID: R070710.9
Sample Description: Single crystal, powder pattern is calculated
Cell Refinement Output: a: 10.620(9)Å    b: 5.860(6)Å    c: 7.206(7)Å
alpha: 90°    beta: 94.94(6)°    gamma: 90°   Volume: 446.8(3)    Crystal System: monoclinic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

DIF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Volborthite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Volborth A, Hess H (1838) Ueber (das Volborthit), ein neues Vanadhaltiges Mineral, Bulletin Scientifique publié par L'Académie Impériale des Sciences de Saint-Pétersbourg, 4, 21-23   [view file]

Genth F A (1878) On some tellurium and vanadium minerals, Proceedings of the American Philosophical Society, 17, 113-123   [view file]

Fleischer M (1965) New mineral names, American Mineralogist, 50, 2096-2111   [view file]

International Mineralogical Association (1968) International Mineralogical Association: Commission on new minerals and mineral names, Mineralogical Magazine, 36, 1143-1145   [view file]

Leonardsen E S, Petersen O V (1974) The unit cell of volborthite, American Mineralogist, 59, 372-373   [view file]

Lafontaine M A, Le Bail A, Férey G (1990) Copper-containing minerals - I. Cu3V2O7(OH)2·2H2O: The synthetic homolog of volborthite; Crystal structure determination from X-ray and neutron data; Structural correlations, Journal of Solid State Chemistry, 85, 220-227

Jambor J L, Puziewicz J (1991) New mineral names, American Mineralogist, 76, 665-671   [view file]
