Yedlinite R050338
Name: Yedlinite
RRUFF ID: R050338
Ideal Chemistry: Pb6CrCl6O(OH)7
Locality: Tiger, Pinal County, Arizona, USA
Source: University of Arizona Mineral Museum 11360
Owner: RRUFF
Description: Pale purple prismatic crystals associated with blue diaboleite
Status: The identification of this mineral is confirmed by single-crystal X-ray diffraction and chemical analysis.
CHEMISTRY
RRUFF ID: R050338.2
Sample Description: Microprobe Fragment
Measured Chemistry: Pb6Cr0.99Cl6.01(OH)7O
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 785nm @ 50% of 500mW
DOWNLOADS:

Raman Data (Processed)
RRUFF File
Raman Data (RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:

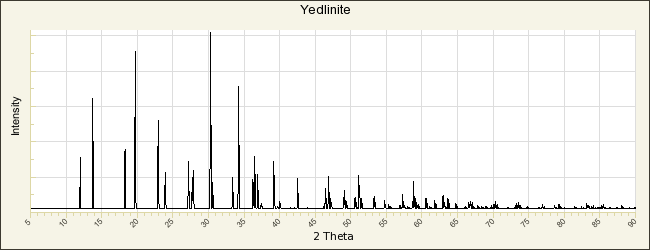

POWDER DIFFRACTION
RRUFF ID: R050338.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 12.8762(4)Å    b: 12.8762(4)Å    c: 9.8367(3)Å
alpha: 90°    beta: 90°    gamma: 120°   Volume: 1412.4(1)    Crystal System: hexagonal
  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Yedlinite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

McLean W J, Bideaux R A, Thomssen R W (1974) Yedlinite, a new mineral from the Mammoth Mine, Tiger, Arizona., American Mineralogist, 59, 1157-1165   [view file]

Wood M M, McLean W J, Laughon R B (1974) The crystal structure and composition of yedlinite, American Mineralogist, 59, 1160-1165   [view file]
