Name: Millerite
RRUFF ID: R080122
Ideal Chemistry: NiS
Locality: Eugenia mine, Bellmunt del Priorat, Tarragona, Catalonia, Spain
Source: Joan Abella i Creus [view label]
Owner: RRUFF
Description: Metallic-bronze striated crystals
Status: The identification of this mineral has been confirmed by single-crystal X-ray diffraction.
Mineral Group: [ Millerite (3) ]
Quick search: [ All Millerite samples (3) ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.

Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R080122
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW

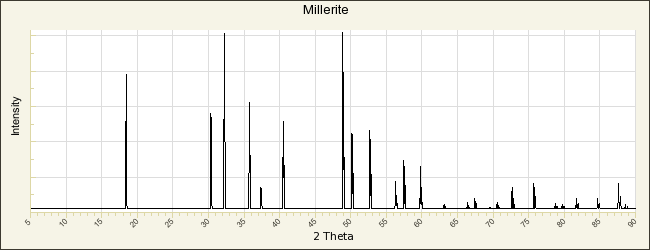

POWDER DIFFRACTION
RRUFF ID: R080122.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 9.616(5)Å    b: 9.616(5)Å    c: 3.146(2)Å
alpha: 90°    beta: 90°    gamma: 120°   Volume: 251.91(8)Å3    Crystal System: hexagonal
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

X Min:    X Max:    X Sort:
REFERENCES for Millerite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Haidinger W (1845) Zweite Klasse: Geogenide. XIII. Ordnung. Kiese. IV. Eisenkies. Millerit., in Handbuch der Bestimmenden Mineralogie Bei Braumüller and Seidel Wien 559-562   [view file]

Palache C, Wood H O (1904) A crystallographic study of millerite, American Journal of Science, 18, 343-359   [view file]

Alsén N (1925) Röntgenographische Untersuchung der Kristallstrukturen von Magnetkies, Breithauptit, Pentlandit, Millerit und verwandten Verbindungen, Geologiska Föreningens i Stockholm Förhandlingar, 47, 19-72   [view file]

Lundqvist D (1947) X-ray studies on the binary system Ni-S, Arkiv för Kemi, Mineralogi och Geologi, 24A, issue 21 1-12

Heyl A V, Milton C, Axelrod J M (1959) Nickel minerals from near Linden, Iowa County, Wisconsin, American Mineralogist, 44, 995-1009   [view file]

Grice J D, Ferguson R B (1974) Crystal structure refinement of millerite (β–NiS), The Canadian Mineralogist, 12, 248-252   [view file]

Rajamani V, Prewitt C T (1974) The crystal structure of millerite, The Canadian Mineralogist, 12, 253-257   [view file]

Pauling L (1978) Covalent chemical bonding of transition metals in pyrite, cobaltite, skutterudite, millerite and related minerals, The Canadian Mineralogist, 16, 447-452   [view file]

Ondruš P, Veselovský F, Gabašová A, Hloušek J, Šrein V, Vavrín I, Skála R, Sejkora J, Drábek M (2003) Primary minerals of the Jáchymov ore district, Journal of the Czech Geological Society, 48, 19-147   [view file]

Sowa H, Ahsbahs H, Schmitz W (2004) X-ray diffraction studies of millerite NiS under non-ambient conditions, Physics and Chemistry of Minerals, 31, 321-327

Gibbs G V, Downs R T, Prewitt C T, Rosso K M, Ross N L, Cox D F (2005) Electron density distributions calculated for the nickel sulfides millerite, vaesite, and heazlewoodite and nickel metal: A case for the importance of Ni-Ni bond paths for electron transport, Journal of Physical Chemistry B, 109, 21788-21795   [view file]

Beckett-Brown C E, McDonald A M, Zhe W (2018) A crystallographically oriented intergrowth of siegenite (CoNi2S4) and millerite from the Morokweng impact structure, South Africa: Chemistry, texture, and origin, The Canadian Mineralogist, 56, 705-722
