Name: Caledonite
RRUFF ID: R060506
Ideal Chemistry: Cu2Pb5(SO4)3(CO3)(OH)6
Locality: Rowley mine, Maricopa County, Arizona, USA
Source: Jim Ricker [view label]
Owner: RRUFF
Description: Blue prismatic crystals
Status: The identification of this mineral has been confirmed by single-crystal X-ray diffraction.
Quick search: [ All Caledonite samples (2) ]
CHEMISTRY
RRUFF ID: R060506.2
Sample Description: Microprobe Fragment
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample.
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
DOWNLOADS:

Raman Data (Processed)
RRUFF File
Raman Data (RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:

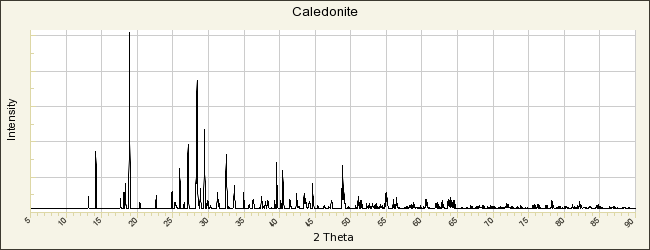

POWDER DIFFRACTION
RRUFF ID: R060506.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 20.100(3)Å    b: 7.149(1)Å    c: 6.567(1)Å
alpha: 90°    beta: 90°    gamma: 90°   Volume: 943.6(4)    Crystal System: orthorhombic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

DIF File
X-ray Data (XY - Processed)
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Caledonite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Giacovazzo C, Menchetti S, Scordari F (1973) The crystal structure of caledonite, Cu2Pb5(SO4)3CO3(OH)6, Acta Crystallographica, B29, 1986-1990

Frost R L, Kloprogge J T, Williams P A (2003) Raman spectroscopy of lead sulphate-carbonate minerals - implications for hydrogen bonding, Neues Jahrbuch für Mineralogie, Monatshefte, 2003, 529-542
