Name: Barlowite
RRUFF ID: R110007
Ideal Chemistry: Cu4BrF(OH)6
Locality: Southwest mine, Bisbee, Cochise County, Arizona, USA
Source: Marcus Origlieri [view label]
Owner: RRUFF
Description: Blue platy crystals associated with cuprite and brochantite
Status: The identification of this mineral has been confirmed by single-crystal X-ray diffraction.
Mineral Group: [ Claringbullite (3) ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented Raman on the primary sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R110007
Wavelength:
Sample Description: Unoriented Raman on the primary sample
Instrument settings: Thermo Almega XR 532nm @ 65% of 150mW
DOWNLOADS:

Raman Data (RAW) View Graph
RRUFF File

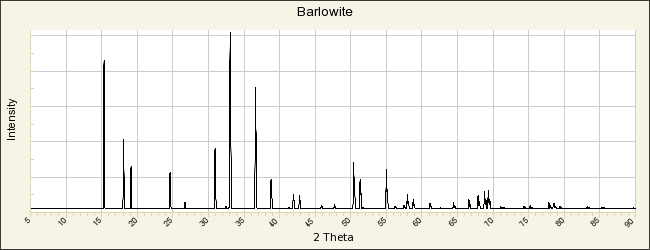

POWDER DIFFRACTION
RRUFF ID: R110007.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 6.673(1)Å    b: 6.673(1)Å    c: 9.279(2)Å
alpha: 90°    beta: 90°    gamma: 120°   Volume: 357.86(7)Å3    Crystal System: hexagonal
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

DIF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Barlowite

American Mineralogist Crystal Structure Database Record: [view record]

Williams P A, Hatert F, Pasero M, Mills S J (2010) IMA Commission on new minerals, nomenclature and classification (CNMNC) Newsletter 4. New minerals and nomenclature modification approved in 2010, Mineralogical Magazine, 74, 797-800   [view file]

Elliott P, Cooper M A, Pring A (2014) Barlowite, Cu4FBr(OH)6, a new mineral isostructural with claringbullite: description and crystal structure, Mineralogical Magazine, 78, 1755-1762   [view file]

Belakovskiy D I, Uvarova Y, Gagne O C (2016) New mineral names, American Mineralogist, 101, 1012-1019   [view file]
