Rodalquilarite R061063

Browse Search Results
<< Previous |  Back to Search Results |  Next >>
Record 3235 of 4216


Name: Rodalquilarite
RRUFF ID: R061063
Ideal Chemistry: H3Fe3+2(Te4+O3)4Cl
Locality: Wendy open pit, Tambo mine, El Indio deposit, Elqui Province, Coquimbo Region, Chile
Source: Bob Jenkins [view label]
Owner: RRUFF
Description: Grass bladed crystals on quartz found with alunite
Status: The identification of this mineral has been confirmed by single-crystal X-ray diffraction.
Quick search: [ All Rodalquilarite samples (2) ]
CHEMISTRY
RRUFF ID: R061063.2
Sample Description: Microprobe Fragment
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R061063
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
DOWNLOADS:

Raman Data (RAW) View Graph
RRUFF File

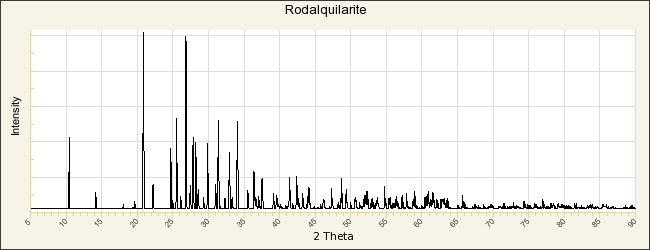

POWDER DIFFRACTION
RRUFF ID: R061063
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 5.116(3)Å    b: 6.629(5)Å    c: 8.951(6)Å
alpha: 73.38(4)°    beta: 77.85(4)°    gamma: 76.67(4)°   Volume: 279.58(6)Å3    Crystal System: triclinic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

DIF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Rodalquilarite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Fleischer M (1968) New mineral names, American Mineralogist, 53, 2103-2106   [view file]

Sierra Lopez J, Leal G, Pierrot R, Laurent Y, Protas J, Dusaoy Y (1968) La rodalquilarite, chlorotellurite de fer, une nouvelle espèce minérale, Bulletin de la Société Française de Minéralogie et de Cristallographie, 91, 28-33   [view file]

Dusausoy Y, Protas J (1969) Determination et etude de la structure cristalline de la rodalquilarite, chlorotellurite acide de fer, Acta Crystallographica, B25, 1551-1558

Feger C R, Kolis J W, Gorny K, Pennington C (1999) Rodalquilarite revisited: the hydrothermal synthesis and structural reinvestigation of H3Fe2(TeO3)4Cl, Journal of Solid State Chemistry, 143, 254-259

Kampf A R, Mills S J (2011) The role of hydrogen in tellurites: crystal structure refinements of juabite, poughite and rodalquilarite, Journal of Geosciences, 56, 235-247
