Armangite R100054

Browse Search Results
<< Previous |  Back to Search Results |  Next >>
Record 269 of 4216


Name: Armangite
RRUFF ID: R100054
Ideal Chemistry: Mn2+26[As3+6(OH)4O14][As3+6O18]2(CO3)
Locality: Langban, Filipstad, Varmland, Sweden
Source: William W Pinch [view label]
Owner: RRUFF
Description: Transparent brown hexagonal crystals
Status: The identification of this mineral has been confirmed by single-crystal X-ray diffraction.
Mineral Group: [ Not in a structural group (133) ]
Quick search: [ All Armangite samples (2) ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented Raman on the primary sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R100054
Wavelength:
Sample Description: Unoriented Raman on the primary sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
DOWNLOADS:

Raman Data (RAW) View Graph
RRUFF File

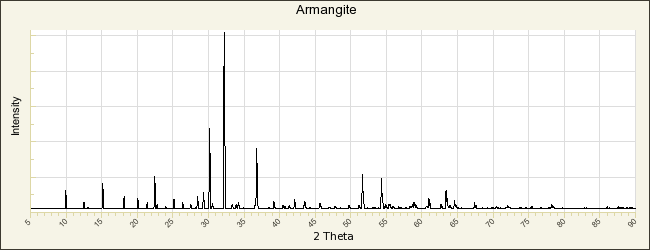

POWDER DIFFRACTION
RRUFF ID: R100054.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 13.5023(7)Å    b: 13.5023(7)Å    c: 8.8854(5)Å
alpha: 90°    beta: 90°    gamma: 120°   Volume: 1402.9(1)Å3    Crystal System: hexagonal
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

DIF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Armangite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Aminoff G, Mauzelius R (1920) Armangite, a new arsenite from Långbanshyttan, Geologiska Föreningens i Stockholm Förhandlingar, 42, 301-309   [view file]

Wherry E T, Gordon S G, Foshag W F (1921) New minerals, American Mineralogist, 6, 63-68   [view file]

Welin E (1968) Notes on the mineralogy of Sweden 6. X-ray powder data for minerals from Långban and the related mineral deposits of Central Sweden, Arkiv för Mineralogi och Geologi, 4, 499-541

Moore P B, Araki T (1979) Armangite, Mn2+26[As3+6(OH)4O14][As3+6O18]2[CO3], a fluorite derivative structure, American Mineralogist, 64, 748-757   [view file]
