Phosphohedyphane R110037

Browse Search Results
<< Previous |  Back to Search Results |  Next >>
Record 2984 of 4216


Name: Phosphohedyphane
RRUFF ID: R110037
Ideal Chemistry: Ca2Pb3(PO4)3Cl
Locality: Blue Bell claims, Baker, San Bernardino County, California, USA
Source: Brent Thorne [view label]
Owner: RRUFF
Description: Colorless hexagonal prisms with long pyramidal terminations
Status: The identification of this mineral has been confirmed only by single crystal X-ray diffraction.
Mineral Group: [ Apatite (56) ]
Quick search: [ All Phosphohedyphane samples (2) ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented Raman on the primary sample; 780 nm spectrum overwhelmed by fluorescence.
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R110037
Wavelength:
Sample Description: Unoriented Raman on the primary sample; 780 nm spectrum overwhelmed by fluorescence.
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
DOWNLOADS:

Raman Data (Processed)
RRUFF File

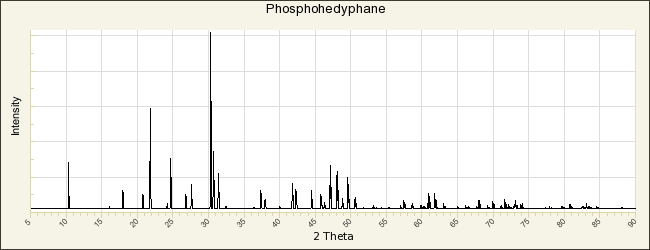

POWDER DIFFRACTION
RRUFF ID: R110037.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 9.863(8)Å    b: 9.863(8)Å    c: 7.208(4)Å
alpha: 90°    beta: 90°    gamma: 120°   Volume: 607.3(1)Å3    Crystal System: hexagonal
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

DIF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Phosphohedyphane

American Mineralogist Crystal Structure Database Record: [view record]

Kampf A R, Steele I M, Jenkins R A (2006) Phosphohedyphane, Ca2Pb3(PO4)3Cl, the phosphate analog of hedyphane: Description and crystal structure, American Mineralogist, 91, 1909-1917   [view file]

Pasero M, Kampf A R, Ferraris C, Pekov I V, Rakovan J R, White T J (2010) Nomenclature of the apatite supergroup minerals, European Journal of Mineralogy, 22, 163-179   [view file]
