Paulingite-Ca R120023

Name: Paulingite-Ca
RRUFF ID: R120023
Ideal Chemistry: (Ca,K,Na,Ba,◻)₁₀(Si,Al)₄₂O₈₄·34H₂O
Locality: Vinařická hora hill, Kladno, Central Bohemian Region, Czech Republic
Source: Dr. Jürgen Wachsmuth [view label]
Owner: RRUFF
Description: Pale yellow rhombic dodecahedra
Status: The identification of this mineral has been confirmed by single-crystal X-ray diffraction.

RAMAN SPECTRUM

RRUFF ID:

Sample Description:

Unoriented Raman on the primary sample; 532 and 780 nm spectra are overwhelmed by fluorescence.

DOWNLOADS:

To download sample data,
please select a specific
orientation angle.

BROAD SCAN WITH SPECTRAL ARTIFACTS

RRUFF ID:

R120023

Wavelength:

Sample Description:

Unoriented Raman on the primary sample; 532 and 780 nm spectra are overwhelmed by fluorescence.

Instrument settings:

Thermo Almega XR 532nm @ 100% of 150mW

DOWNLOADS:

	Raman Data (Processed)
	RRUFF File
	Raman Data (RAW)
	RRUFF File

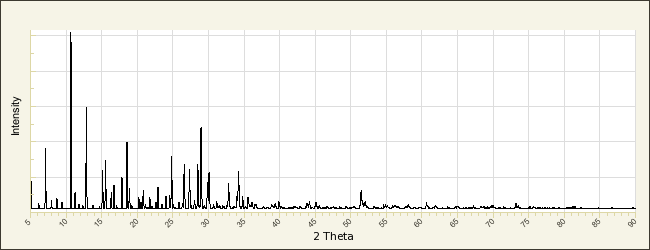

POWDER DIFFRACTION

RRUFF ID:

R120023.9

Sample Description:

Single crystal, powder profile is calculated

Cell Refinement Output:

a: 35.134(2)Å b: 35.134(2)Å c: 35.134(2)Å
alpha: 90° beta: 90° gamma: 90° Volume: 43368(1)Å³ Crystal System: cubic

File Type Information

Calculated diffraction file.

File Type Information

Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

	DIF File
	X-ray Data (XY - RAW)
	RRUFF File

REFERENCES for Paulingite-Ca
American Mineralogist Crystal Structure Database Record: [view record]
Kamb W B, Oke W C (1960) Paulingite, an new zeolite, in association with erionite and filiform pyrite, American Mineralogist, 45, 79-91 [view file]
Tschernich R W, Wise W S (1982) Paulinginte: variations in composition, American Mineralogist, 67, 799-803 [view file]
Coombs D S, Alberti A, Armbruster T, Artioli G, Colella C, Galli E, Grice J D, Liebau F, Mandarino J A, Minato H, Nickel E H, Passaglia E, Peacor D R, Quartieri S, Rinaldi R, Ross M, Sheppard R A, Tillmanns E, Vezzalini G, (1997) Recommended nomenclature for zeolite minerals: report of the Subcommittee on Zeolites of the International Mineralogical Association, Commission on New Minerals and Mineral Names, The Canadian Mineralogist, 35, 1571-1606 [view file]
Jambor J L, Grew E S, Roberts A C (1998) New mineral names, American Mineralogist, 83, 1347-1352 [view file]
Krivovichev S V (2013) Structural complexity of minerals: information storage and processing in the mineral world, Mineralogical Magazine, 77, 275-326
