Valentinite R120096

Browse Search Results
<< Previous |  Back to Search Results |  Next >>
Record 3930 of 4216


Name: Valentinite
RRUFF ID: R120096
Ideal Chemistry: Sb2O3
Locality: China
Source: Rob Lavinsky
Owner: RRUFF
Description: Radial spray of pale yellow and colorless bladed crystals
Status: The identification of this mineral has been confirmed by single-crystal X-ray diffraction.
Quick search: [ All Valentinite samples (3) ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented Raman on the primary sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R120096
Wavelength:
Sample Description: Unoriented Raman on the primary sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
DOWNLOADS:

Raman Data (Processed)
RRUFF File
Raman Data (RAW) View Graph
RRUFF File

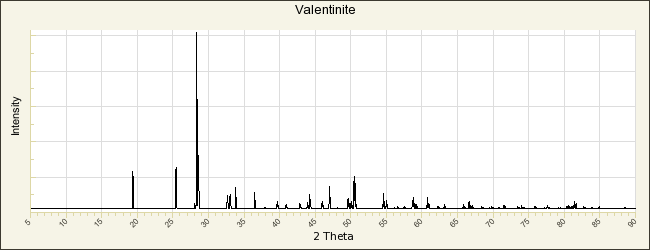

POWDER DIFFRACTION
RRUFF ID: R120096.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 4.920(1)Å    b: 12.484(2)Å    c: 5.4185(8)Å
alpha: 90°    beta: 90°    gamma: 90°   Volume: 332.80(9)Å3    Crystal System: orthorhombic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

DIF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Valentinite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Haidinger W (1845) Zweite Klasse: Geogenide. II. Ordnung. Baryte VIII. Antimonbaryt. Valentinit., in Handbuch der Bestimmenden Mineralogie Bei Braumüller and Seidel Wien 499-506   [view file]

Buerger M J, Hendricks S B (1938) The crystal structure of valentinite (orthorhombic Sb2O3), Zeitschrift für Kristallographie, 98, 1-30   [view file]

Mason B, Vitaliano C J (1952) The mineralogy of the antimony oxides and antimonates, Mineralogical Magazine, 30, 100-112   [view file]

Svensson C (1974) The crystal structure of orthorhombic antimony trioxide, Sb2O3, Acta Crystallographica, B30, 458-461

International Mineralogical Association (1980) International Mineralogical Association: Commission on new minerals and mineral names, Mineralogical Magazine, 43, 1053-1055   [view file]

Whitten AE, Dittrich B, Spackman MA, Turner P, Brown TC (2004) Charge density analysis of two polymorphs of antimony(III) oxide, Dalton Transactions, 2004, 23-29

Kolitsch U, Rieck B, Brandstätter F, Schreiber F, Fabritz K H, Blaß G, Gröbner J (2014) Neufunde aus dem altem Bergbau und den Schlacken von Lavrion (II), Mineralien Welt, 25, 82-95

Moseley D H, Bridges C A, Daemen L L, Zhang Q, McGuire M A, Cakmak E, Hermann R P (2023) Structure and anharmonicity of α- and β-Sb2O3 at low temperature, Crystals, 13, 752   [link]   [view file]
