Name: Danburite
RRUFF ID: R040013
Ideal Chemistry: CaB2Si2O8
Locality: Charcas, San Luis Potosi, Mexico
Source: Marcus Origlieri
Owner: RRUFF
Description: Colorless prismatic single crystal
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis
Mineral Group: [ Danburite (6) ]
Quick search: [ All Danburite samples (3) ]
RRUFF ID: R040013.2
Sample Description: Microprobe Fragment
Measured Chemistry: Ca1.00B2.00Si2.00O8
Microprobe Data File: [ Download Excel File ]
Sample Description: Sample is oriented, mounted onto a pin and polished
Pin ID: M00012
Orientation: Laser parallel to  c*  (0 0 1).     Fiducial mark perpendicular to laser is parallel to  a   [1 0 0].

  To download sample data,
  please select a specific
  orientation angle.

Raman Mode Analysis
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
RRUFF ID: R040013
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW

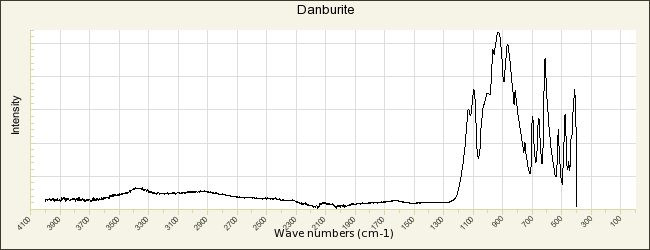

INFRARED SPECTRUM (Attenuated Total Reflectance)
RRUFF ID: R040013.1
Instrument settings: SensIR Durascope on a Nicolet Magna 860 FTIR
X Min:    X Max:    X Sort:
RRUFF ID: R040013.1
Sample Description: Powder

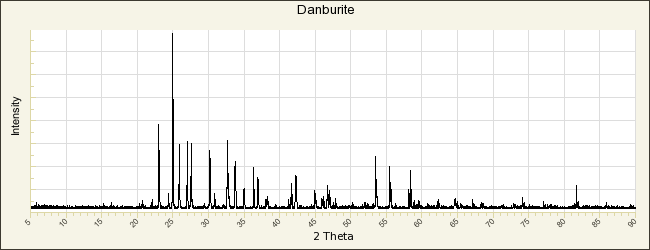

Cell Refinement Output: a: 8.0432(5)Å    b: 8.7644(5)Å    c: 7.739(1)Å
alpha: 90.°    beta: 90.°    gamma: 90.°   Volume: 545.58(6)Å3    Crystal System: orthorhombic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

X Min:    X Max:    X Sort:
REFERENCES for Danburite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Shepard C U (1839) Notice of danburite, a new mineral species, American Journal of Science and Arts, 35, 137-139   [view file]

Shepard C U (1840) Der danburit, eine neue mineralspecies, Annalen der Physik und Chemie, 50, 182-182   [view file]

Dunbar C, Machatschki F (1931) Structure of danburite, CaB2Si2O8, Zeitschrift für Kristallographie, 76, 133-146   [view file]

Lindbloom J T, Gibbs G V, Ribbe P H (1974) The crystal structure of hurlbutite: A comparison with danburite and anorthite, American Mineralogist, 59, 1267-1271   [view file]

Phillips M W, Gibbs G V, Ribbe P H (1974) The crystal structure of danburite: A comparison with anorthite, albite, reedmergnerite, American Mineralogist, 59, 79-85   [view file]

Sugiyama K, Takéuchi Y (1985) Unusual thermal expansion of a B-O-bond in the structure of danburite CaB2Si2O8, Zeitschrift für Kristallographie, 173, 293-304   [view file]

Kimata M (1993) Crystal structure of KBSi3O8 isostructural with danburite, Mineralogical Magazine, 57, 157-164   [view file]

Shannon R D, Shannon R C, Medenbach O, Fischer R X (2002) Refractive index and dispersion of fluorides and oxides, Journal of Physical and Chemical Reference Data, 31, 931-970   [view file]
