Name: Bixbyite-(Fe)
RRUFF ID: R050395
Ideal Chemistry: Fe3+2O3
Locality: Thomas Range, Juab County, Utah, USA
Source: Marcus Origlieri
Owner: RRUFF
Description: Black cube modified with octahedral corners
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis
Mineral Group: [ Bixbyite (2) ]
CHEMISTRY
RRUFF ID: R050395.2
Sample Description: Microprobe Fragment
Measured Chemistry: (Fe3+1.09Mn3+0.83Al0.04Ti0.03)O3
Microprobe Data File: [ Download Excel File ]
RAMAN SPECTRUM
Sample Description: Unoriented sample
DOWNLOADS:

Raman Data (Processed)
RRUFF File
Raman Data (RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:

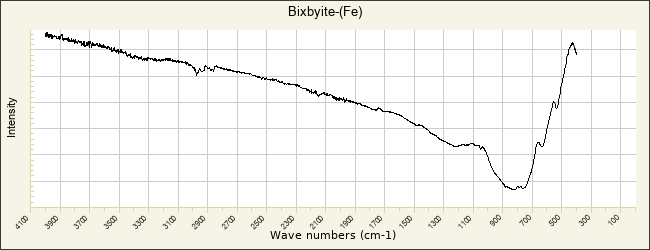

INFRARED SPECTRUM (Attenuated Total Reflectance)
RRUFF ID: R050395.1
Instrument settings: SensIR Durascope on a Nicolet Magna 860 FTIR
Resolution:
DOWNLOADS:

Infrared Data (Processed)
RRUFF File
X Min:    X Max:    X Sort:
POWDER DIFFRACTION
RRUFF ID: R050395.1
Sample Description: Powder
Cell Refinement Output: a: 9.4124(3)Å    b: 9.4124(3)Å    c: 9.4124(3)Å
alpha: 90°    beta: 90°    gamma: 90°   Volume: 833.88(7)Å3    Crystal System: cubic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

Cell Refinement Data
Cell Refinement Output Data
DIF File
X-ray Data (XY - Processed)
RRUFF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Bixbyite-(Fe)

American Mineralogist Crystal Structure Database Record: [view record]

Zachariasen W H (1928) Untersuchungen über die Kristallstruktur von Sesquioxyden und Verbindungen ABO3, Skrifter Utgitt av Det Norske Videnskaps-Akademi i Oslo, 1, 1-165   [view file]

Pauling L, Shappell M D (1930) The crystal structure of bixbyite and the C-modification of the sesquioxides, Zeitschrift für Kristallographie, 75, 128-142   [view file]

Geller S (1971) Structures of α-Mn2O3, (Mn0.983Fe0.017)2O3 and (Mn0.37Fe0.63)2O3 and relation to magnetic ordering, Acta Crystallographica, B27, 821-828

Ben-Dor L, Fischbein E, Kalman Z H (1976) Concerning the β phase of iron(III) oxide, Acta Crystallographica, B32, 667-667

Danno T, Nakatsuka D, Kusano Y, Asaoka H, Nakanishi M, Fujii T, Ikeda Y, Takada J (2013) Crystal structure of β‑Fe2O3 and topotactic phase transformation to α‑Fe2O3, Crystal Growth and Design, 13, 770-774

Rayaprol S, Kaushik S D, Babu P D Siruguri V (2013) Structure and magnetism of FeMnO3, AIP Conference Proceedings, 1512, 1132-1133   [view file]

Ghosh D, Dutta U, Haque A, Mordvinova N E, Lebedev O I, Pal K, Gayen A, Mahata P, Kundu A K, Seikh M M (2017) Evidence of low temperature spin glass transition in bixbyite type FeMnO3, Materials Science and Engineering B, 226, 206-210

Miyawaki R, Hatert F, Pasero M, Mills S J (2022) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) Newsletter 64, Mineralogical Magazine, 86, 178-182   [view file]
