Name: Artinite
RRUFF ID: R060234
Ideal Chemistry: Mg2(CO3)(OH)2·3H2O
Locality: southern San Benito County, California, USA
Source: Michael Scott S100297 [view label]
Owner: RRUFF
Description: Divergent sprays of clear colorless acicular crystals
Status: The identification of this mineral is confirmed by single-crystal X-ray diffraction and chemical analysis.
Mineral Group: [ Artinite (3) ]
Quick search: [ All Artinite samples (2) ]
CHEMISTRY
RRUFF ID: R060234.2
Sample Description: Microprobe fragment
Measured Chemistry: Mg2.00(CO3)(OH)2ยท3H2O
Microprobe Data File: [ Download Excel File ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R060234
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
DOWNLOADS:

Raman Data (Processed)
RRUFF File
Raman Data (RAW) View Graph
RRUFF File

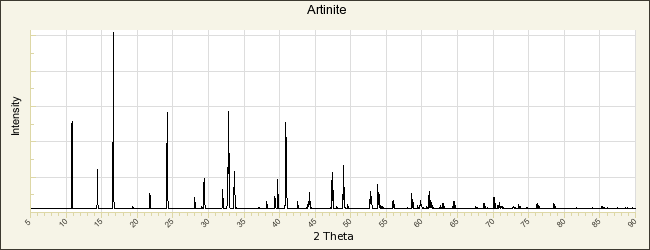

POWDER DIFFRACTION
RRUFF ID: R060234.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 16.527(8)Å    b: 3.1500(9)Å    c: 6.222(3)Å
alpha: 90°    beta: 99.00(2)°    gamma: 90°   Volume: 319.9(3)Å3    Crystal System: monoclinic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

DIF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Artinite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Brugnatelli S C L (1902) Sopra un nuovo minerale delle cave d´Amianto della Valle Lanterna, Rendiconti Reale Istituto Lombardo di Scienze e Lettere (Milano), 35, 869-874   [view file]

Larsen E S (1921) The microscopic determination of the nonopaque minerals, U.S. Geological Survey Bulletin, 671, 5-294   [view file]

Akao M, Iwai S (1977) The hydrogen bonding of artinite, Acta Crystallographica, B33, 3951-3953   [link]
