Name: Covellite
RRUFF ID: R060306
Ideal Chemistry: CuS
Locality: 3800' level, Leonard mine, Butte, Silver Bow County, Montana, USA
Source: Michael Scott S100126 [view label]
Owner: RRUFF
Description: Blue iridescent metallic hexagonal plates
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis
Mineral Group: [ Covellite (4) ]
Quick search: [ All Covellite samples (3) ]
CHEMISTRY
RRUFF ID: R060306.2
Sample Description: Microprobe fragment
Measured Chemistry: Cu1.00S1.00
Microprobe Data File: [ Download Excel File ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Sample is oriented and mounted on a pin
Pin ID: M00169
Orientation: Laser parallel to  -a*  (-1 0 0).     Fiducial mark perpendicular to laser is parallel to  c   [0 0 1].
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.

Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R060306
Wavelength:
Sample Description: Unoriented Raman on the primary sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW

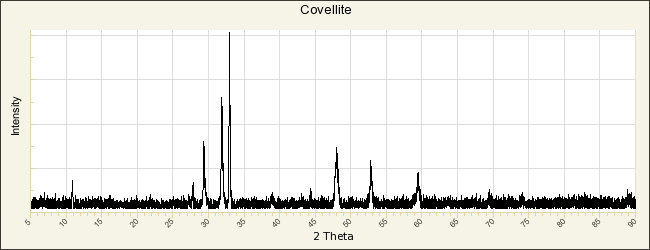

POWDER DIFFRACTION
RRUFF ID: R060306.1
Sample Description: Powder
Cell Refinement Output: a: 3.7937(7)Å    b: 3.7937(7)Å    c: 16.357(3)Å
alpha: 90.°    beta: 90.°    gamma: 120.°   Volume: 203.88(5)Å3    Crystal System: hexagonal
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

X Min:    X Max:    X Sort:
REFERENCES for Covellite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Beudant F S (1832) Sulfure de cuivre du Vésuve, in Traité Élémentaire de Minéralogie, 2nd Edition Paris 409-410   [view file]

Oftedal I (1932) Die Kristallstruktur des Covellins (CuS)., Zeitschrift für Kristallographie, 83, 9-25   [view file]

Mathieu H J, Rickert H (1972) Elektrochemisch-thermodynamische Untersuchungen am System Kupfer-Schwefel bei Temperaturen T = 15-90°C, Zeitschrift für Physikalische Chemie Neue Folge, 79, 315-330

Goble R J, Smith D G W (1973) Electron microprobe investigation of copper sulphides in the Precambrian Lewis Series of S.W. Alberta, Canada, The Canadian Mineralogist, 12, 95-103   [view file]

Kalbskopf R, Pertlik F, Zemann J (1975) Verfeinerung der kristallstruktur des covellins, CuS, mit einkristalldaten, Tschermaks Mineralogische und Petrographische Mitteilungen, 22, 242-249

Takeuchi Y, Ozawa T (1975) The structure of Cu4Bi4S9 and its relation to the structures of covellite, CuS and bismuthinite, Bi2S3, Zeitschrift für Kristallographie, 141, 217-232   [view file]

Evans H T, Konnert J A (1976) Crystal structure refinement of covellite, American Mineralogist, 61, 996-1000   [view file]

Ohmasa M, Suzuki M, Takéuchi Y (1976) A refinement of the crystal structure of covellite, CuS, Mineralogical Journal, 8, 311-319   [view file]

Potter R W II (1977) An electrochemical investigation of the system copper-sulfur, Economic Geology, 72, 1524-1542

Tatsuka K, Morimoto N (1977) Tetrahedrite stability relations in the Cu-Fe-Sb-S system, American Mineralogist, 62, 1101-1109   [view file]

Evans H T (1981) Copper coordination in low chalcocite djurleite and other copper-rich sulfides, American Mineralogist, 66, 807-818   [view file]

Miller R (1981) Kawazulite Bi2Te2Se, related bismuth minerals and selenian covellite from the Northwest Territories, The Canadian Mineralogist, 19, 341-348   [view file]

Nickel E H (1985) An unusual assemblage of supergene minerals near Coppin Pool, Western Australia, Australian Journal of Earth Sciences, 32, 311-321

Takéuchi Y, Kudoh Y, Sato G (1985) The crystal structure of covellite CuS under high pressure up to 33 kbar, Zeitschrift für Kristallographie, 173, 119-128   [view file]

Walsh C A, Rimstidt J D (1986) Rates of reaction of covellite and blaubleibender covellite with ferric iron at pH 2.0, The Canadian Mineralogist, 24, 35-44   [view file]

Fjellvåg H, Grønvold F, Stølen S, Andresen A F, Müller-Käfer R, Simon A (1988) Low-temperature structural distortion in CuS, Zeitschrift für Kristallographie, 184, 111-121   [view file]

Peiris S M, Sweeney J S, Campbell A J, Heinz D L (1996) Pressure-induced amorphization of covellite, CuS, The Journal of Chemical Physics, 104, 11-16

Ondruš P, Veselovský F, Gabašová A, Hloušek J, Šrein V, Vavrín I, Skála R, Sejkora J, Drábek M (2003) Primary minerals of the Jáchymov ore district, Journal of the Czech Geological Society, 48, 19-147   [view file]

Goh S W, Buckley A N, Lamb R N, Rosenberg R A, Moran D (2006) The oxidation states of copper and iron in mineral sulfides, and the oxides formed on initial exposure of chalcopyrite and bornite to air, Geochimica et Cosmochimica Acta, 70, 2210-2228

Bencistà I, Di Benedetto F, Innocenti M, De Luca A, Fornaciai G, Lavacchi A, Montegrossi G, Oberhauser W, Pardi L A, Romanelli M, Vizza F, Foresti M L (2012) Phase composition of CuxS thin films: spectroscopic evidence of covellite formation, European Journal of Mineralogy, 24, 879-884

Markl G, Keim M F, Bayerl R (2019) Unusual mineral diversity in hydrothermal vein-type deposit: The Clara mine, SW Germany, as a type example, The Canadian Mineralogist, 57, 427-456
