Name: Magnesio-fluoro-hastingsite
RRUFF ID: R141082
Ideal Chemistry: NaCa2(Mg4Fe3+)(Si6Al2)O22F2
Locality: Caspar quarry, Bellerberg volcano, Mayen, Eifel, Germany
Source: Ch. and H. Schäfer [view label]
Owner: RRUFF
Description: Euhedral brown crystal embedded in matrix
Status: The identification of this mineral has been confirmed only by single crystal X-ray diffraction.
Mineral Group: [ amphibole (107) ]
Quick search: [ All Magnesio-fluoro-hastingsite samples (3) ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented Raman on the primary sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R141082
Wavelength:
Sample Description: Unoriented Raman on the primary sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
DOWNLOADS:

Raman Data (Processed)
RRUFF File

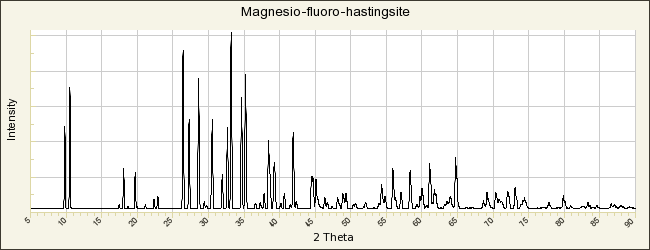

POWDER DIFFRACTION
RRUFF ID: R141082.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 9.849(3)Å    b: 18.013(5)Å    c: 5.297(1)Å
alpha: 90°    beta: 105.32(2)°    gamma: 90°   Volume: 906.3(2)Å3    Crystal System: monoclinic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

DIF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Magnesio-fluoro-hastingsite

American Mineralogist Crystal Structure Database Record: [view record]

Bojar H P, Walter F (2006) Fluoro-magnesiohastingsite from Dealul Uroi (Hunedoara county, Romania): Mineral data and crystal structure of a new amphibole end-member, European Journal of Mineralogy, 18, 503-508   [view file]

Piilonen P C, Locock A J, Rowe R, Ercit T S (2007) New mineral names, American Mineralogist, 92, 703-707   [view file]

Hawthorne F C, Oberti R, Harlow G E, Maresch W V, Martin R F, Schumacher J C, Welch M D (2012) Nomenclature of the amphibole supergroup, American Mineralogist, 97, 2031-2048   [view file]
