Zhenruite R220010

Browse Search Results
<< Previous |  Back to Search Results |  Next >>
Record 4169 of 4216


Name: Zhenruite
RRUFF ID: R220010
Ideal Chemistry: (MoO3)2·H2O
Locality: Freedom No. 2 mine, Marysvale District (Marysvale Uranium area), Piute County, Utah, USA
Source: Mike Scott S102692
Owner: RRUFF
Description: Colorless bladed or tabular crystals, associated with R220001.
Status: unconfirmed
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented Raman on the primary sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R220010
Wavelength:
Sample Description: Unoriented Raman on the primary sample
Instrument settings: none nm @ 100% of mW
DOWNLOADS:

Raman Data (RAW) View Graph
RRUFF File

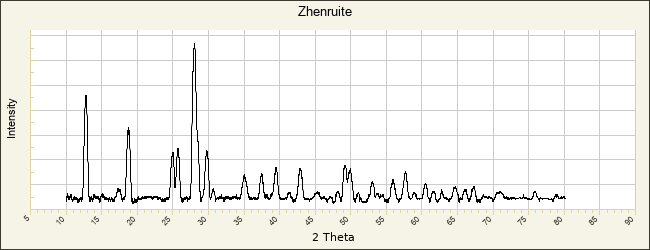

POWDER DIFFRACTION
RRUFF ID: R220010
Cell Refinement Output: a: 9.6790(5)Å    b: 3.70653(19)Å    c: 7.1029(4)Å
alpha: 90°    beta: 102.391(5)°    gamma: 90°   Volume: 248.88(2)Å3    Crystal System: monoclinic
  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Zhenruite

Miyawaki R, Hatert F, Pasero M, Mills S J (2022) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) Newsletter 69, European Journal of Mineralogy, 34, 463-468   [view file]
