15 R060900 - RRUFF Database: Raman, X-ray, Infrared, and Chemistry

Hübnerite R060900

Name: Hübnerite
RRUFF ID: R060900
Ideal Chemistry: Mn²⁺(WO₄)
Locality: near Kara-Oba Deposit, Kazakhstan
Source: Michael Scott S100974 [view label]
Owner: RRUFF
Description: Very dark red single crystal
Status: The identification of this mineral is not yet confirmed.

Mineral Group: [ Columbite (32) ]

Quick search: [ All Hübnerite samples (4) ]

CHEMISTRY

RRUFF ID:	R060900.2
Sample Description:	Microprobe Fragment

RAMAN SPECTRUM

RRUFF ID:

Sample Description:

Unoriented sample

DOWNLOADS:

To download sample data,
please select a specific
orientation angle.

BROAD SCAN WITH SPECTRAL ARTIFACTS

RRUFF ID:

R060900

Wavelength:

Sample Description:

Unoriented sample

Instrument settings:

Thermo Almega XR 532nm @ 100% of 150mW

DOWNLOADS:

	Raman Data (RAW)
	RRUFF File

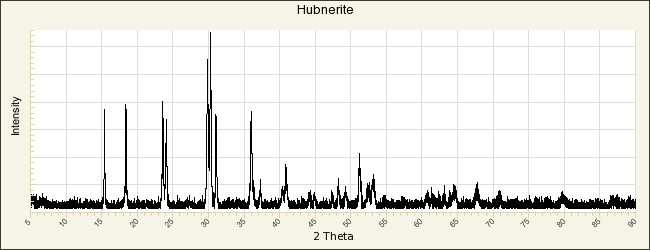

POWDER DIFFRACTION

RRUFF ID:

R060900.1

Sample Description:

Powder

Cell Refinement Output:

a: 4.8242(5)Å b: 5.7565(3)Å c: 4.9939(8)Å
alpha: 90° beta: 88.92(2)° gamma: 90° Volume: 138.66(2)Å³ Crystal System: monoclinic

File Type Information

Calculated diffraction file.

File Type Information

Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

File Type Information

Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

	Cell Refinement Data
	Cell Refinement Output Data
	DIF File
	X-ray Data (XY - Processed)
	RRUFF File
	X-ray Data (XY - RAW)
	RRUFF File

REFERENCES for Hübnerite
American Mineralogist Crystal Structure Database Record: [view record]
Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]
Credner H (1865) Hübnerit, ein neues Mineral, Berg- und Huttenmannische Zeitung, 24, 370-371 [view file]
Bailly P R (1948) Utilisation des radiations infra-rouges dans les recherches minéralogiques et en particulier pour la détermination des minéraux opaques, Bulletin de la Société Française de Minéralogie et de Cristallographie, 70, 49-152 [view file]
Dachs H, Stoll E, Weitzel H (1967) Kristallstruktur und magnetische ordnung des hübnerits, MnWO₄, Zeitschrift für Kristallographie, 125, 120-129 [view file]
Moore F, Howie R A (1978) On the application of the hübnerite: ferberite ratio as a geothermometer, Mineralium Deposita, 13, 391-397
Macavei J, Schulz H (1993) The crystal structure of wolframite type tungstates at high pressure, Zeitschrift für Kristallographie, 207, 193-208 [view file]
Ondruš P, Veselovský F, Gabašová A, Hloušek J, Šrein V, Vavrín I, Skála R, Sejkora J, Drábek M (2003) Primary minerals of the Jáchymov ore district, Journal of the Czech Geological Society, 48, 19-147 [view file]
Kloprogge J T, Weier M L Duong L V, Frost R L (2004) Microwave-assisted synthesis and characterisation of divalent metal tungstate nanocrystalline minerals: ferberite, hübnerite, sanmartinite, scheelite and stolzite, Materials Chemistry and Physics, 88, 438-443
Romer R L, Lüders V (2006) Direct dating of hydrothermal W mineralization: U-Pb age for hübnerite (MnWO₄), Sweet Home Mine, Colorado, Geochimica et Cosmochimica Acta, 70, 4725-4733
Becker P, Bohatý L, Eichler H J, Rhee H, Kaminskii A A (2007) High-gain raman induced multiple stokes and anti-stokes generation in monoclinic multiferroic MnWO₄ single crystals, The Laser Physics Letters, 4, 884-889 [view file]
Talla D, Beran A, Škoda R, Losos Z (2017) Polarized FTIR spectroscopic examination on hydroxylation in the minerals of the wolframite group, (Fe,Mn,Mg)[W,(Nb,Ta)][O,(OH)]₄, American Mineralogist, 102, 867-875
Chukanov N, Pasero M, Aksenov S M, Britvin S N, Zubkova N V, Yike L, Witzke T (2023) Columbite supergroup of minerals: nomenclature and classification, Mineralogical Magazine, 87, 18-33
