Altaite R060939

Name: Altaite
RRUFF ID: R060939
Ideal Chemistry: PbTe
Locality: 870 Level, Mattagami mine, Matagami, Quebec, Canada
Source: Michael Scott S100891 [view label]
Owner: Michael Scott
Description: Gray metallic crystals with excellent cleavage
Status: The identification of this mineral is confirmed by single-crystal X-ray diffraction and chemical analysis.

Mineral Group: [ Rocksalt (18) ]

CHEMISTRY

RRUFF ID:	R060939.2
Sample Description:	Microprobe Fragment
Measured Chemistry:	Pb_1.00Te_1.00
Microprobe Data File:	[ Download Excel File ]

RAMAN SPECTRUM

RRUFF ID:

Sample Description:

Unoriented sample, Raman peaks are forbidden by symmetry

DOWNLOADS:

To download sample data,
please select a specific
orientation angle.

BROAD SCAN WITH SPECTRAL ARTIFACTS

RRUFF ID:

R060939

Wavelength:

Sample Description:

Unoriented sample, Raman peaks are forbidden by symmetry

Instrument settings:

Thermo Almega XR 532nm @ 100% of 150mW

DOWNLOADS:

	Raman Data (RAW)
	RRUFF File

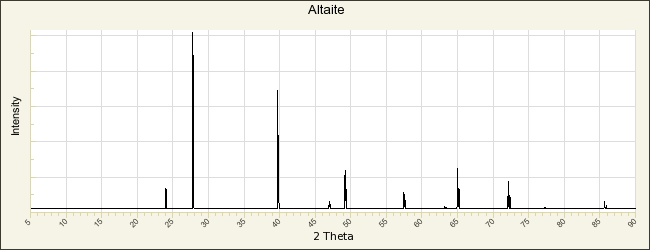

POWDER DIFFRACTION

RRUFF ID:

R060939.9

Sample Description:

Single crystal, powder profile is calculated

Cell Refinement Output:

a: 6.410(9)Å b: 6.410(9)Å c: 6.410(9)Å
alpha: 90° beta: 90° gamma: 90° Volume: 263.4(1)Å³ Crystal System: cubic

File Type Information

Calculated diffraction file.

File Type Information

Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

	DIF File
	X-ray Data (XY - RAW)
	RRUFF File

REFERENCES for Altaite
American Mineralogist Crystal Structure Database Record: [view record]
Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]
Haidinger W (1845) Zweite Klasse: Geogenide. XII. Ordung. Metalle. II. Tellur. Altait, in Handbuch der Bestimmenden Mineralogie Bei Braumüller and Seidel Wien 556-559 [view file]
Genth F A (1868) Contributions to mineralogy - No. VII, American Journal of Science and Arts, 95, 305-321 [view file]
Ramsdell L S (1925) The crystal structure of some metallic sulfides, American Mineralogist, 10, 281-304 [view file]
Thompson R M (1949) The telluride minerals and their occurrence in Canada, American Mineralogist, 34, 342-382 [view file]
Noda Y, Masumoto K, Ohba S, Saito Y, Toriumi K, Iwata Y, Shibuya I (1987) Temperature dependence of atomic thermal parameters of lead chalcogenides, PbS, PbSe and PbTe, Acta Crystallographica, C43, 1443-1445
Knight K S (2016) Does altaite exhibit emphanitic behavior? A high resolution neutron powder diffraction investigation of the crystallographic and thermoelastic properties of PbTe between 10 and 500 k, The Canadian Mineralogist, 54, 1493-1503
