Jonesite R080005

Name: Jonesite
RRUFF ID: R080005
Ideal Chemistry: KBa₂Ti₂(Si₅Al)O₁₈·nH₂O
Locality: Langban, Filipstad, Varmland, Sweden
Source: Michael Scott S101067 [view label]
Owner: RRUFF
Description: Colorless blades associated with metallic haussmanite and calcite.
Status: The identification of this mineral has been confirmed by single-crystal X-ray diffraction.

Mineral Group: [ Not in a structural group (133) ]

Quick search: [ All Jonesite samples (2) ]

CHEMISTRY

RRUFF ID:	R080005.2
Sample Description:	Microprobe Fragment

RAMAN SPECTRUM

RRUFF ID:

Sample Description:

Unoriented sample

DOWNLOADS:

To download sample data,
please select a specific
orientation angle.

BROAD SCAN WITH SPECTRAL ARTIFACTS

RRUFF ID:

R080005

Wavelength:

Sample Description:

Unoriented sample

Instrument settings:

Thermo Almega XR 532nm @ 100% of 150mW

DOWNLOADS:

	Raman Data (RAW)
	RRUFF File

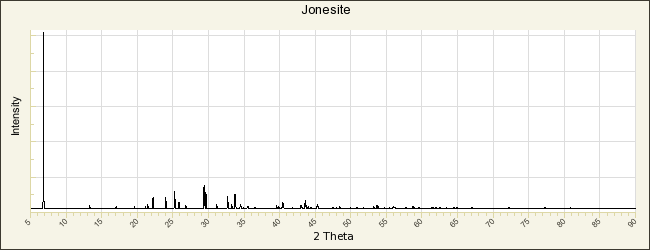

POWDER DIFFRACTION

RRUFF ID:

R080005.9

Sample Description:

Single crystal, powder profile is calculated

Cell Refinement Output:

a: 10.6151(8)Å b: 25.901(3)Å c: 8.6923(9)Å
alpha: 90° beta: 127.637(4)° gamma: 90° Volume: 1892.5(5)Å³ Crystal System: monoclinic

File Type Information

Calculated diffraction file.

File Type Information

Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

	DIF File
	X-ray Data (XY - RAW)
	RRUFF File

REFERENCES for Jonesite
American Mineralogist Crystal Structure Database Record: [view record]
Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]
Wise W S, Pabst A, Hinthorne J R (1977) Jonesite a new mineral from the Benitoite Gem mine, San Benito County, California, The Mineralogical Record, 8, 453-456 [view file]
Krivovichev S V, Armbruster T (2004) The crystal structure of jonesite, Ba₂(K,Na)[Ti₂(Si₅Al)O₁₈(H₂O)](H₂O)_n: a first example of titanosilicate with porous double layers, American Mineralogist, 89, 314-318 [view file]
