Name: Pyrobelonite
RRUFF ID: R080057
Ideal Chemistry: PbMn2+VO4(OH)
Locality: Ty Coch Manganese mine, Glamorgan County, Wales, United Kingdom
Source: Michael Scott S101174 [view label]
Owner: RRUFF
Description: Fiery-red grains on light-pink calcite vein
Status: The identification of this mineral has been confirmed by single-crystal X-ray diffraction.
Mineral Group: [ descloizite (10) ]
Quick search: [ All Pyrobelonite samples (2) ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R080057
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
DOWNLOADS:

Raman Data (Processed)
RRUFF File
Raman Data (RAW) View Graph
RRUFF File

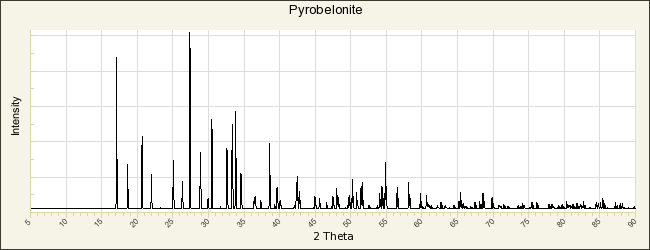

POWDER DIFFRACTION
RRUFF ID: R080057.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 7.653(2)Å    b: 6.183(2)Å    c: 9.517(3)Å
alpha: 90°    beta: 90°    gamma: 90°   Volume: 450.3(2)Å3    Crystal System: orthorhombic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

DIF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Pyrobelonite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Flink G (1919) Pyrobelonit, ein neues Blei-Mangan-Vanadat von Långbanshyttan, Geologiska Föreningens i Stockholm Förhandlingar, 41, 433-447   [view file]

Foshag W F (1920) New minerals, American Mineralogist, 5, 86-88   [view file]

Richmond W E (1940) Crystal chemistry of the phosphates, arsenates and vanadates of the type A2XO4(Z), American Mineralogist, 25, 441-478   [view file]

Barnes W H, Qurashi M M (1952) Unit cell and space group data for certain vanadium minerals, American Mineralogist, 37, 407-422

Bachmann H G (1953) Beiträge zur kristallchemie natürlicher und künstlicher schwermetallvanadate. I. Die morphologie des descloizit (und des pyrobelonit), Neues Jahrbuch für Mineralogie, Monatshefte, 1953, 68-82

Donaldson D M, Barnes W H (1955) The structures of the minerals of the descloizite group and adelite groups: II - pyrobelonite, American Mineralogist, 40, 580-596   [view file]

Welin E (1968) Notes on the mineralogy of Sweden 6. X-ray powder data for minerals from Långban and the related mineral deposits of Central Sweden, Arkiv för Mineralogi och Geologi, 4, 499-541

Barnes W H, Ahmed F R (1969) A note on the unit cell contents, and X-ray diffraction powder pattern, of pyrobelonite, The Canadian Mineralogist, 10, 117-123   [view file]

Dunn P J (1983) Pyrobelonite from Franklin, New Jersey, The Mineralogical Record, 14, 203-204

Kolitsch U (2001) Refinement of pyrobelonite, PbMnIIVO4(OH), a member of the descloizite group, Acta Crystallographica, E57, i119-i121
