Amblygonite R040067

Name: Amblygonite
RRUFF ID: R040067
Ideal Chemistry: LiAl(PO₄)F
Locality: Montebras, France
Source: University of Arizona Mineral Museum 4802 [view label]
Owner: RRUFF
Description: Pale blue fine-grained massive, associated with wavellite
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis

Quick search: [ All Amblygonite samples (3) ]

CHEMISTRY

RRUFF ID:	R040067.2
Sample Description:	Microprobe Fragment
Measured Chemistry:	(Li_0.76Na_0.24)Al(PO₄)(F_0.80(OH)_0.20)

RAMAN SPECTRUM

RRUFF ID:

Sample Description:

Unoriented sample

DOWNLOADS:

To download sample data,
please select a specific
orientation angle.

Raman Mode Analysis

BROAD SCAN WITH SPECTRAL ARTIFACTS

RRUFF ID:

R040067

Wavelength:

Sample Description:

Unoriented sample

Instrument settings:

Thermo Almega XR 532nm @ 100% of 150mW

DOWNLOADS:

	Raman Data (RAW)
	RRUFF File

INFRARED SPECTRUM (Attenuated Total Reflectance)

RRUFF ID:

R040067.1

Sample Description:

Powder

Instrument settings:

SensIR Durascope on a Nicolet Magna 860 FTIR

Resolution:

DOWNLOADS:

	Infrared Data (Processed)
	RRUFF File

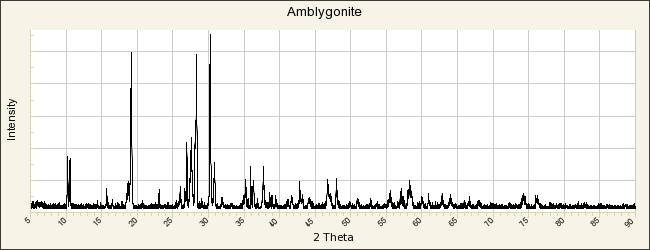

POWDER DIFFRACTION

RRUFF ID:

R040067.1

Sample Description:

Powder, mixed with ~14 wt % wavellite

Cell Refinement Output:

a: 6.6770(6)Å b: 7.7199(5)Å c: 6.9531(4)Å
alpha: 90.752(8)° beta: 117.631(7)° gamma: 91.230(8)° Volume: 317.35(3)Å³ Crystal System: triclinic

File Type Information

Calculated diffraction file.

File Type Information

Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

File Type Information

Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

	Cell Refinement Data
	Cell Refinement Output Data
	DIF File
	X-ray Data (XY - Processed)
	RRUFF File
	X-ray Data (XY - RAW)
	RRUFF File

REFERENCES for Amblygonite
American Mineralogist Crystal Structure Database Record: [view record]
Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]
Breithaupt J F A (1818) Gattung B. amblygonit, in Handbuch der Mineralogie von C. A. S. Hoffmann, Volume 4 Craz und Gerlach Freiberg 159-161 [view file]
Coiseaux D (1864) Ueber die doppeltbrechenden eigenschaften und die krytallform des amblygonits, Annalen der Physik, 199, 183-187 [view file]
Richmond W E (1940) Crystal chemistry of the phosphates, arsenates and vanadates of the type A₂XO₄(Z), American Mineralogist, 25, 441-478 [view file]
Nel H J (1946) Petalite and amblygonite from Karibib, South West Africa, American Mineralogist, 31, 51-57 [view file]
Baur W H (1959) Die Kristallstruktur des Edelamblygonits LiAlPO₄(OH,F), Acta Crystallographica, 12, 988-994
Černá I, Černý P, Ferguson R B (1972) The Tanco pegmatite at Bernic Lake, Manitoba. III. Amblygonite-montebrasite, The Canadian Mineralogist, 11, 643-659 [view file]
Loh S E, Wise W S (1976) Synthesis and fluorine-hydroxyl exchange in the amblygonite series, The Canadian Mineralogist, 14, 357-363 [view file]
Shigley J E, Brown G E (1985) Occurance and alteration of phosphate minerals at the Stewart Pegmatite, Pala District, San Diego County, California, American Mineralogist, 70, 395-408 [view file]
Groat L A, Rausepp M, Hawthorne F C, Ercit T S, Sherriff B L, Hartman J S (1990) The amblygonite-montebrasite series: Characterization by single-crystal structure refinement, infrared spectroscopy, and multinuclear MAS-NMR spectroscopy, American Mineralogist, 75, 992-1008 [view file]
Rondeau B, Fritsch E, Lefevre P, Guiraud M, Fransolet A M, Lulzac Y (2006) A Raman investigation of the amblygonite—montebrasite series, The Canadian Mineralogist, 44, 1109-1117 [view file]
Dias L N, Pinheiro M V B, Moreira R L, Krambrock K, Guedes K J, Menezes L A D, Karfunkel J, Schnellrath J, Scholz R (2011) Spectroscopic characterization of transition metal impurities in natural montebrasite/amblygonite, American Mineralogist, 96, 42-52 [view file]
