Name: Argentopyrite
RRUFF ID: R090026
Ideal Chemistry: AgFe2S3
Locality: Schaft 209, Aue, Niederschlema, Erzgebirge, Saxony, Germany
Source: Mark N. Feinglos [view label]
Owner: RRUFF
Description: Bronze tarnished rectangular prism. Sample used by Yang et al (2009) for structure determination.
Status: The identification of this mineral is confirmed by single-crystal X-ray diffraction and chemical analysis.
Mineral Group: [ Cubanite (7) ]
Quick search: [ All Argentopyrite samples (3) ]
CHEMISTRY
RRUFF ID: R090026.2
Sample Description: Microprobe Fragment
Measured Chemistry: Ag0.96Fe2.01S3
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented Raman on the primary sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R090026
Wavelength:
Sample Description: Unoriented Raman on the primary sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
DOWNLOADS:

Raman Data (Processed)
RRUFF File
Raman Data (RAW) View Graph
RRUFF File

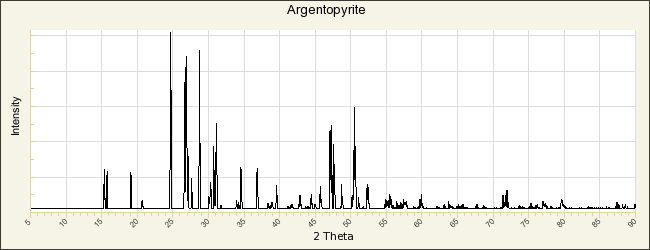

POWDER DIFFRACTION
RRUFF ID: R090026.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 6.6902(2)Å    b: 11.4497(4)Å    c: 6.4525(2)Å
alpha: 90°    beta: 90°    gamma: 90.2420(8)°   Volume: 494.26(3)Å3    Crystal System: monoclinic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

DIF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Argentopyrite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

von Waltershausen W S (1866) Einige nachträgliche Bemerkungen über den Silberkies, Nachrichten von der Königliche Gesellschaft der Wissenschaftern und der Georg-Augusts-Universität, 1866, 66-68   [view file]

Dana J D, Brush G J (1868) 40A. Argentopyrite, in A System of Mineralogy, Fifth Edition John Wiley and Sons New York   [view file]

Schrauf A (1871) Mineralogische beobachtungen III, Sitzungsberichte der Mathematisch-Naturwissenschaftlichen Classe der Kaiserlichen Akademie der Wissenschaften, 114, 123-205   [view file]

Murdoch J, Berry L G (1954) X-ray measurements on argentopyrite, American Mineralogist, 39, 475-485   [view file]

Czamanske G K, Larson R R (1969) The chemical identity and formula of argentopyrite and sternbergite, American Mineralogist, 54, 1198-1201   [view file]

Czamanske G K (1969) The stability of argentopyrite and sternbergite, Economic Geology, 64, 459-461

Šrein V, Rídkošil T, Kašpar P, Šourek J (1986) Argentopyrite and sternbergite from polymetallic veins of the skarn deposit Medenec, Krušné hory Mts., Czechoslovakia, Neues Jahrbuch für Mineralogie, Abhandlungen, 154, 207-222

Ondruš P, Veselovský F, Gabašová A, Hloušek J, Šrein V, Vavrín I, Skála R, Sejkora J, Drábek M (2003) Primary minerals of the Jáchymov ore district, Journal of the Czech Geological Society, 48, 19-147   [view file]

Yang H, Pinch W W, Downs R T (2009) Crystal structure of argentopyrite, AgFe2S3, and its relationship with cubanite, American Mineralogist, 94, 1727-1730   [view file]
